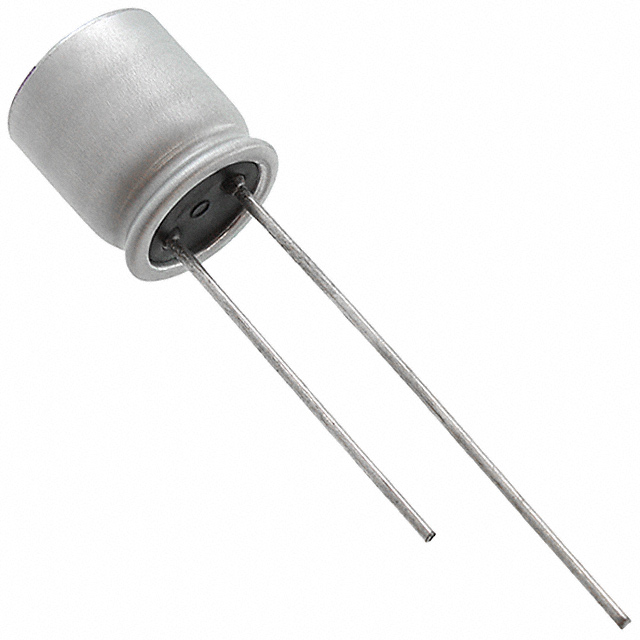

| Part Number | 6SEPC560MX |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|
| Description | CAP POLYMER 560UF 20% 6.3V T/H |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Capacitors |
|---|
| Series | OS-CON, SEPC |
|---|
| Family | Aluminum - Polymer Capacitors |
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 200 |
|---|
| Packaging | Bulk |
|---|
| Capacitance | 560μF |
|---|
| Tolerance | ±20% |
|---|
| Voltage Rating | 6.3V |
|---|
| ESR (Equivalent Series Resistance) | 7 mOhm |
|---|
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Polarization | Polar |
|---|
| Applications | General Purpose |
|---|
| Ripple Current | 6.1A |
|---|
| Impedance | - |
|---|
| Lead Spacing | 0.138" (3.50mm) |
|---|
| Size / Dimension | 0.315" Dia (8.00mm) |
|---|
| Height - Seated (Max) | 0.354" (9.00mm) |
|---|
| Surface Mount Land Size | - |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | Radial, Can |
|---|
| Online Catalog |
OS-CON, SEPC Series
|
|---|
| Other Names | P16367 |
|---|
