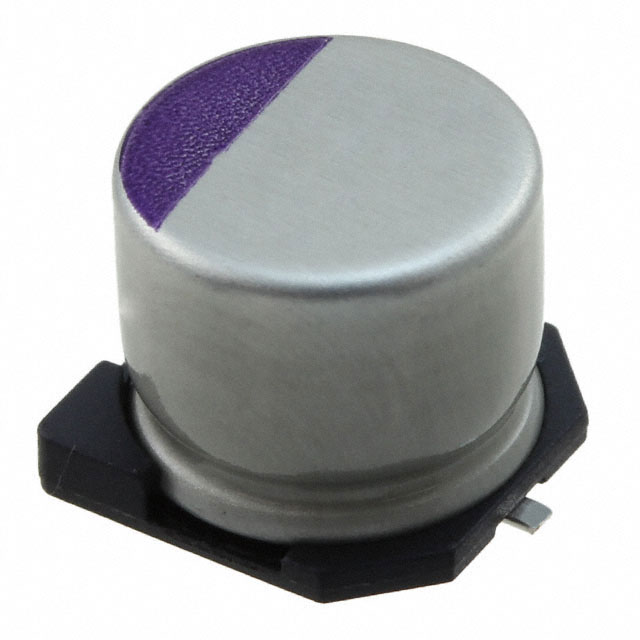

| Part Number | 6SVPS220M |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|
| Description | CAP POLYMER 220UF 20% 6.3V SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Capacitors |
|---|
| Series | OS-CON, SVPS |
|---|
| Family | Aluminum - Polymer Capacitors |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Capacitance | 220μF |
|---|
| Tolerance | ±20% |
|---|
| Voltage Rating | 6.3V |
|---|
| ESR (Equivalent Series Resistance) | 22 mOhm |
|---|
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Type | Polymer |
|---|
| Applications | General Purpose |
|---|
| Ripple Current | 3.22A |
|---|
| Impedance | - |
|---|
| Lead Spacing | - |
|---|
| Size / Dimension | 0.315" Dia (8.00mm) |
|---|
| Height - Seated (Max) | 0.276" (7.00mm) |
|---|
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Radial, Can - SMD |
|---|
| Online Catalog | OS-CON, SVPS Series |
|---|
| Other Names | PCE5087DKR |
|---|
