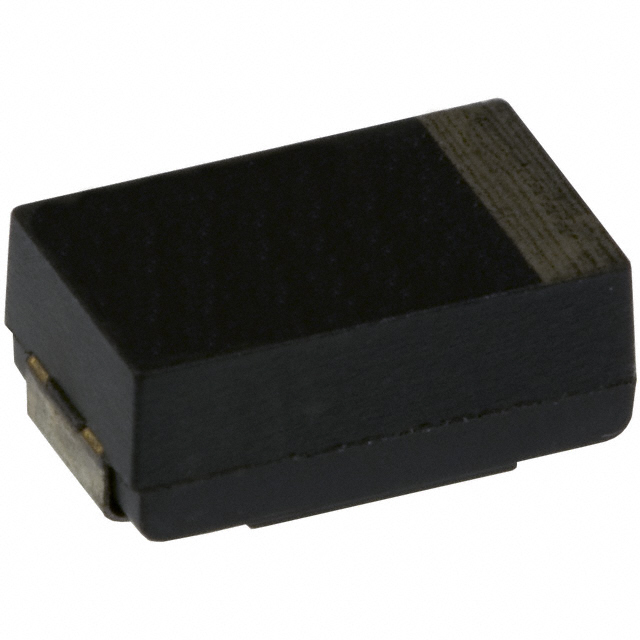

| Part Number | EEF-UD0J151R |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|
| Description | CAP POLYMER 150UF 20% 6.3V SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Capacitors |
|---|
| Series | SP-Cap UD |
|---|
| Family | Aluminum - Polymer Capacitors |
|---|
| Product Training Modules |
SP Caps
LED Lighting Components
|
|---|
| PCN Packaging |
EEF Series SP-Cap 14/May/2013
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Capacitance | 150μF |
|---|
| Tolerance | ±20% |
|---|
| Voltage Rating | 6.3V |
|---|
| ESR (Equivalent Series Resistance) | 18 mOhm |
|---|
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Type | Polymer |
|---|
| Applications | - |
|---|
| Ripple Current | 2.5A |
|---|
| Impedance | - |
|---|
| Lead Spacing | - |
|---|
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
|---|
| Height - Seated (Max) | 0.110" (2.80mm) |
|---|
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 2917 (7343 Metric) |
|---|
| Online Catalog | SP-Cap UD Series |
|---|
| Kits | SP2-KIT-ND - KIT CAP SPEC POLY 12 VAL 15 EACH |
|---|
| Other Names | PCE3600CT |
|---|
