| Part Number | ECH-U1H822GB5 |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|

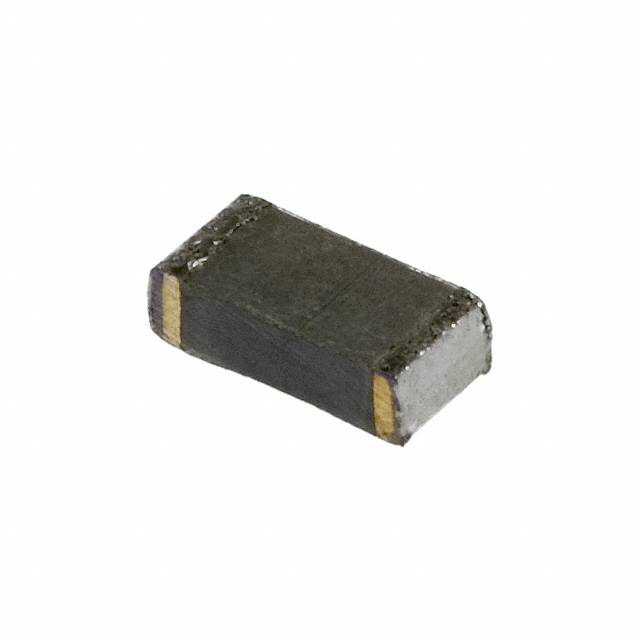

| Description | CAP FILM 8200PF 2% 50VDC 1206 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Capacitors |
|---|
| Series | ECH-U(B) |
|---|
| Family | Film Capacitors |
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Capacitance | 8200pF |
|---|
| Tolerance | ±2% |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 50V |
|---|
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
|---|
| ESR (Equivalent Series Resistance) | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 1206 (3216 Metric) |
|---|
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
|---|
| Height - Seated (Max) | 0.047" (1.20mm) |
|---|
| Termination | Solder Pads |
|---|
| Lead Spacing | - |
|---|
| Applications | General Purpose |
|---|
| Features | - |
|---|
| Online Catalog |
ECH-U(B) Series
|
|---|
| Other Names | ECHU1H822GB5
PCF1112TR |
|---|
