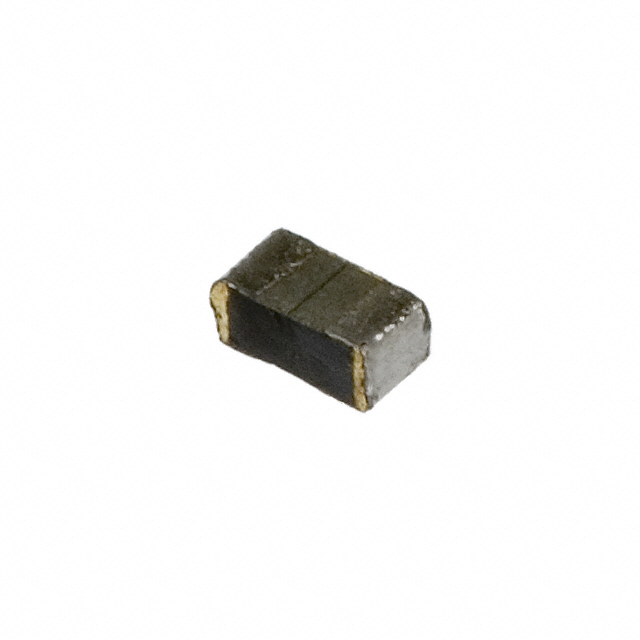

| Part Number | ECH-U1C272JX5 |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|
| Description | CAP FILM 2700PF 5% 16VDC 0603 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Capacitors |
|---|
| Series | ECH-U(X) |
|---|
| Family | Film Capacitors |
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 4,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Capacitance | 2700pF |
|---|
| Tolerance | ±5% |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 16V |
|---|
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
|---|
| ESR (Equivalent Series Resistance) | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 0603 (1608 Metric) |
|---|
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
|---|
| Height - Seated (Max) | 0.033" (0.85mm) |
|---|
| Termination | Solder Pads |
|---|
| Lead Spacing | - |
|---|
| Applications | General Purpose |
|---|
| Features | Derating Recommended |
|---|
| Online Catalog |
ECH-U(X) Series
|
|---|
| Other Names | ECHU1C272JX5
PCF1476TR |
|---|
