| Part Number | EE92251B3-000U-999 |
|---|
| Manufacturer | Sunon Fans |
|---|

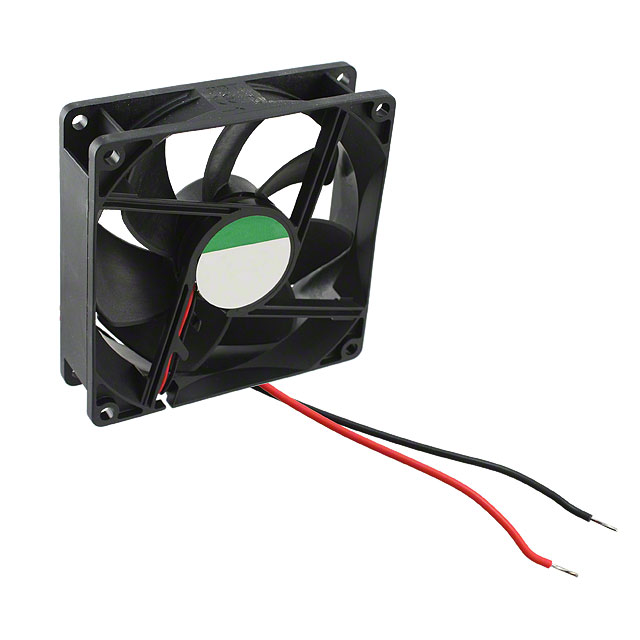

| Description | FAN AXIAL 92X25MM 12VDC WIRE |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Fans, Thermal Management |
|---|
| Series | DR MagLev? |
|---|
| Family | DC Fans |
|---|
| Product Training Modules |
DR MagLev Fan Series
|
|---|
| Featured Product |
E Series Fans
|
|---|
| Standard Package | 200 |
|---|
| Voltage - Rated | 12VDC |
|---|
| Size / Dimension | Square - 92mm L x 92mm H x 25mm W |
|---|
| Air Flow | 39.5 CFM (1.12m3/min) |
|---|
| Static Pressure | 0.100 in H2O (24.9 Pa) |
|---|
| Bearing Type | Ball |
|---|
| Fan Type | Tubeaxial |
|---|
| Features | - |
|---|
| Noise | 28 dB(A) |
|---|
| Power (Watts) | 1.26W |
|---|
| RPM | 2400 RPM |
|---|
| Termination | 2 Wire Leads |
|---|
| Ingress Protection | - |
|---|
| Weight | 0.207 lb (93.89g) |
|---|
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
|---|
| Current Rating | 0.105A |
|---|
| Voltage Range | 4.5 ~ 13.8VDC |
|---|
| Life Expectancy | 50000 hrs @ 25°C |
|---|
| Material - Frame | Polybutylene Terephthalate (PBT) |
|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
|---|
| Associated Product | 259-1627-ND - FAN GUARD 92MM METAL36-8459-ND - GUARD ASSY 3.80"SQ FOR 3 5/8"FAN36-8451-ND - GUARD FINGER FOR 3 5/8" FAN MET36-8462-ND - GUARD FAN FOR 3 5/8" FAN PLASTIC |
|---|
| Other Names | EE92251B3-0000-999EE92251B3-0000-999-ND |
|---|
