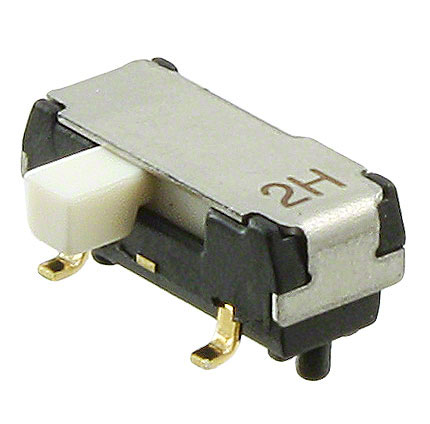

| Part Number | CL-SB-12B-12T |
|---|
| Manufacturer | Copal Electronics Inc. |
|---|
| Description | SWITCH SLIDE SPDT 200MA 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | CL-SB |
|---|
| Family | Slide Switches |
|---|
| 3D Model |
CL-SB-12B-12T
|
|---|
| Standard Package | 500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Circuit | SPDT |
|---|
| Contact Timing | Non-Shorting (BBM) |
|---|
| Switch Function | On-On |
|---|
| Current Rating | 200mA (DC) |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 12V |
|---|
| Actuator Type | Standard |
|---|
| Actuator Length | 2.00mm |
|---|
| Contact Material | Copper |
|---|
| Contact Finish | Gold |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination Style | Gull Wing |
|---|
| Features | - |
|---|
| Actuator Material | Polyamide (PA), Nylon |
|---|
| Switch Travel | 2.00mm |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 10,000 Cycles |
|---|
| Operating Force | 153gf |
|---|
| Online Catalog | CL-SB Series |
|---|
| Other Names | 563-1321-2CLSB12B12T |
|---|
