| Part Number | 44D30-02-2-AJN |
|---|
| Manufacturer | Grayhill Inc. |
|---|
| Description | SW ROTARY MIL DP 2DECK ADJ 115V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | 44 |
|---|
| Family | Rotary Switches |
|---|
| PCN Other |
Multiple Devices Plating Material 30/Jan/2015
|
|---|
| Standard Package | 1 |
|---|
| Number of Positions | 2 ~ 6 |
|---|
| Index Stops | Adjustable |
|---|
| Number of Decks | 2 |
|---|
| Number of Poles per Deck | 2 |
|---|
| Circuit per Deck | DP6T |
|---|
| Contact Timing | Non-Shorting (BBM) |
|---|
| Current Rating | 1A (AC/DC) |
|---|
| Voltage Rating - AC | 115V |
|---|
| Voltage Rating - DC | 28V |
|---|

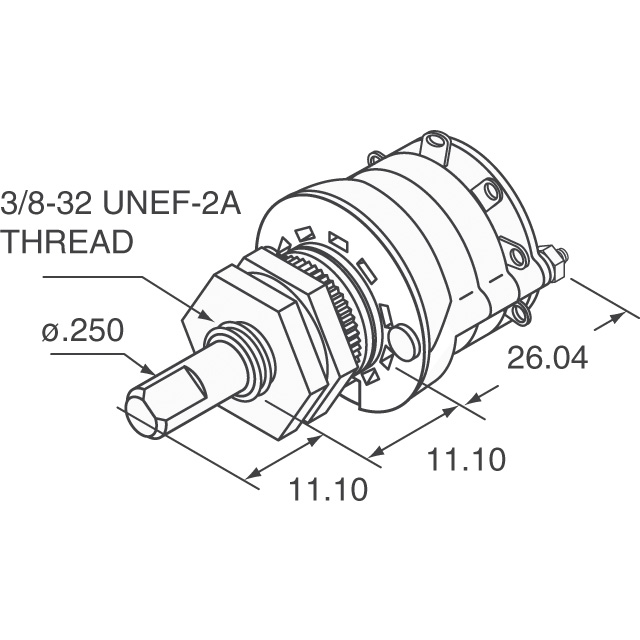

| Actuator Type | Flatted (6.35mm Dia) |
|---|
| Actuator Length | 11.10mm |
|---|
| Angle of Throw | 30° |
|---|
| Contact Material | Silver Alloy |
|---|
| Contact Finish | - |
|---|
| Mounting Type | Panel Mount |
|---|
| Termination Style | Solder Lug |
|---|
| Features | - |
|---|
| Depth Behind Panel | 34.82mm |
|---|
| Panel Cutout Dimensions | - |
|---|
| Operating Force, Torque | 8 ~ 115 in-oz |
|---|
| Online Catalog | 42 and 44 Series |
|---|
| Associated Product | 335-1016-ND - BOOT ROTARY SHAFT 3/8-32NEF GRAYGH7341-ND - KNOB PLASTIC 1/4" DIA BLACKGH7342-ND - KNOB PLASTIC 1/4" DIA BLACK335-1143-ND - BOOT ROTARY SHAFT 3/8-32NEF GRAYGH7338-ND - KNOB PLASTIC 1/4" DIA BLACKGH7339-ND - KNOB PLASTIC 1/4" DIA BLACKGH7340-ND - KNOB PLASTIC 1/4" DIA BLACKGH7651-ND - KNOB PLASTIC 1.3" DIA GRAYGH7654-ND - KNOB 1/4" SHAFT GRAY COLORGH7663-ND - CONTROL KNOB BLK NYLONGH7666-ND - KNOB PLASTIC 1/4" DIA BLACK11K5020-KCAG-ND - KNOB PLASTIC 1.5" DIA GRAY11K5028-KCNG-ND - KNOB 1/4" SHAFT GRAY COLOR11K5015-KMNG-ND - KNOB 1/4" SHAFT GRAY COLOR |
|---|
| Other Names | 44D30-02-2-AJN-ND44D30022AJNGH7346Q1410080 |
|---|
