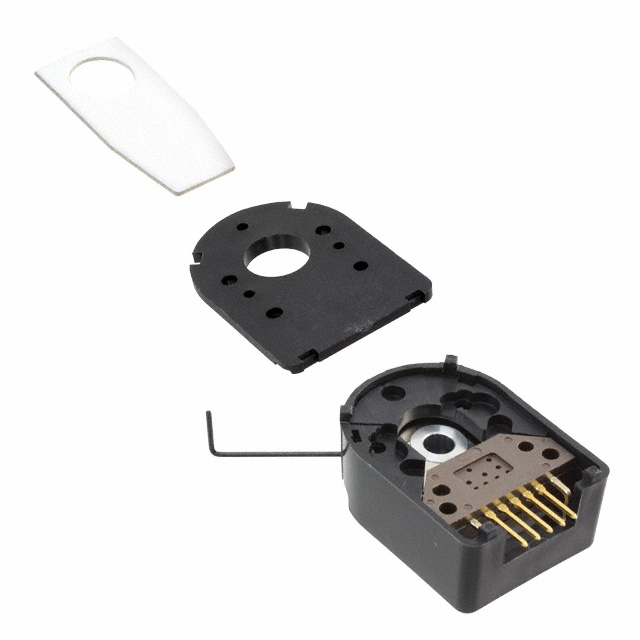

| Part Number | HEDS-5540#A14 |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|
| Description | OPTICAL ENCODER PC PIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Sensors, Transducers |
|---|
| Series | HEDS |
|---|
| Family | Encoders |
|---|
| Standard Package | 25 |
|---|
| Encoder Type | Optical |
|---|
| Output Type | Quadrature with Index (Incremental) |
|---|
| Pulses per Revolution | 500 |
|---|
| Voltage - Supply | 5V |
|---|
| Actuator Type | 5mm Open Center |
|---|
| Detent | No |
|---|
| Built in Switch | No |
|---|
| Mounting Type | Chassis Mount, Motors |
|---|
| Orientation | Vertical |
|---|
| Termination Style | Terminal Pins |
|---|
| Rotational Life (Cycles Min) | - |
|---|
| Online Catalog | HEDM-55xx and HEDS-55xx/56xx Series |
|---|
| Associated Product | HEDS-8907-001-ND - SILICON RUBBER PROTECTORHEDS-8910#014-ND - TOOL ALIGNMENT HEDX-5XXX 5MM |
|---|
| Other Names | 516-2761HEDS-5540#A14-NDHEDS5540A14Q4116976 |
|---|
