| Part Number | GP2S700HCP |
|---|
| Manufacturer | Sharp Microelectronics |
|---|

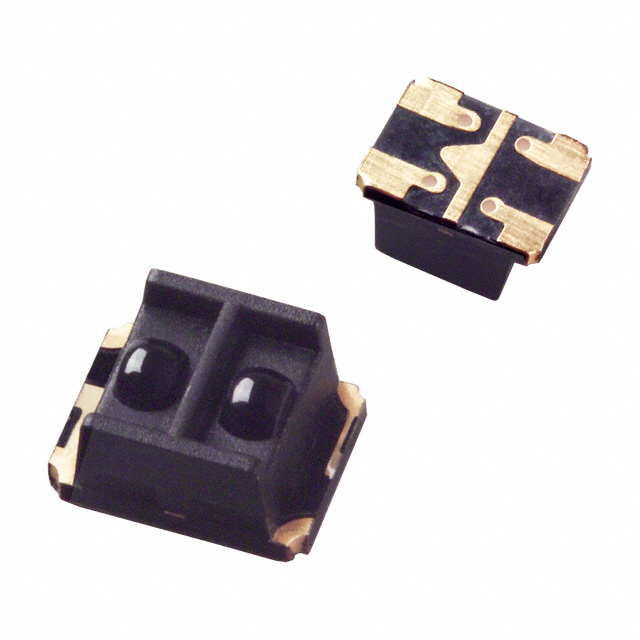

| Description | PHOTOINTERRUPTER REFLEC 3MM SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Sensors, Transducers |
|---|
| Series | - |
|---|
| Family | Optical Sensors - Reflective - Analog Output |
|---|
| PCN Design/Specification |
Internal Emitter Chip 04/May/2007
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Sensing Distance | 0.217" (5.5mm) |
|---|
| Sensing Method | Reflective |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 35V |
|---|
| Current - Collector (Ic) (Max) | 20mA |
|---|
| Current - DC Forward (If) (Max) | 50mA |
|---|
| Output Type | Phototransistor |
|---|
| Response Time | 20μs |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 4-SMD |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Online Catalog | GP2S700HCP |
|---|
| For Use With | 1471-1423-ND - DEV BOARD IR REFLECT CLICK |
|---|
| Other Names | 425-1913-6 |
|---|
