| Part Number | H22A3 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | SENSOR OPTO SLOT 3MM TRANS THRU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | H22A3 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

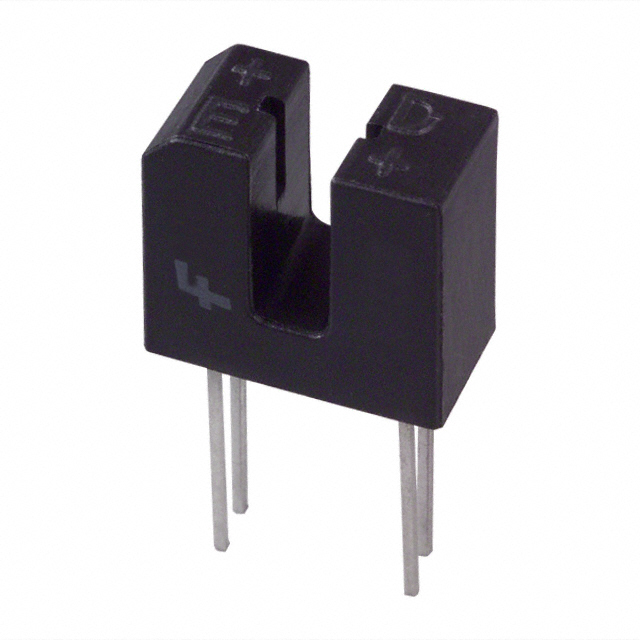

H22A3
-
- USD 0.00
Product Details
| Part Number | H22A3 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | SENSOR OPTO SLOT 3MM TRANS THRU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Sensors, Transducers |
| Series | - |
| Family | Optical Sensors - Photointerrupters - Slot Type - Transistor Output |
| PCN Obsolescence/ EOL | Multiple Devices 03/Dec/2009 |
| Standard Package | 50 |
| Packaging | Tube |
| Sensing Distance | 0.118" (3mm) |
| Sensing Method | Transmissive |
| Output Configuration | Phototransistor |
| Current - DC Forward (If) (Max) | 60mA |
| Current - Collector (Ic) (Max) | 5.5mA |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Response Time | 8μs, 50μs |
| Mounting Type | Through Hole |
| Package / Case | PCB Mount |
| Type | Unamplified |
| Operating Temperature | -55°C ~ 100°C |
