| Part Number | W1038 |
|---|
| Manufacturer | Pulse Electronics Corporation |
|---|

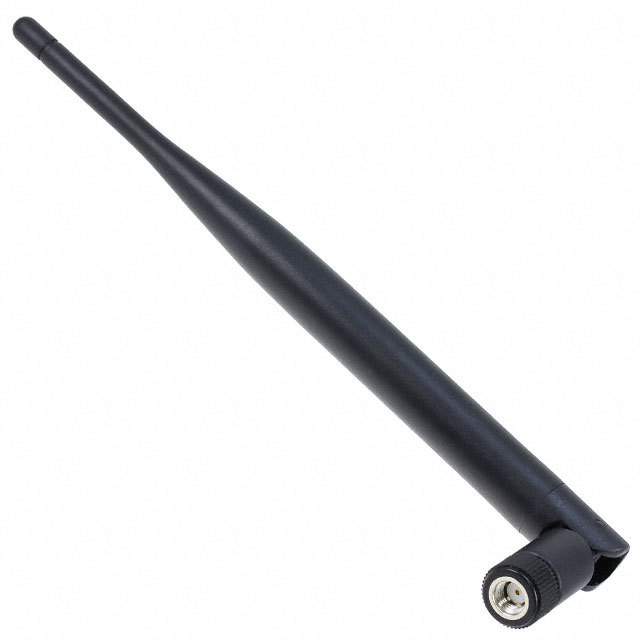

| Description | ANTENNA 2.4GHZ HG R-SMA BLK 6.6" |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Antennas |
|---|
| Featured Product |
Wireless External Antennas
|
|---|
| PCN Design/Specification |
W1027,28B,37,38 Dimension Changes 23/Sep/2013
|
|---|
| Standard Package | 250 |
|---|
| Packaging | * |
|---|
| Frequency Group | UHF (2 GHz ~ 3 GHz) |
|---|
| Frequency (Center/Band) | 2.4GHz |
|---|
| Frequency Range | 2.4GHz ~ 2.5GHz |
|---|
| Antenna Type | Whip, Tilt |
|---|
| Number of Bands | 1 |
|---|
| VSWR | 2 |
|---|
| Return Loss | - |
|---|
| Gain | - |
|---|
| Power - Max | - |
|---|
| Features | - |
|---|
| Termination | Connector, RP-SMA Male |
|---|
| Ingress Protection | - |
|---|
| Mounting Type | Connector Mount |
|---|
| Height (Max) | 7.760" (197.10mm) |
|---|
| Applications | Bluetooth, WLAN, Zigbee? |
|---|
| Online Catalog | Pulse - External |
|---|
| For Use With | 746-1059-ND - SNAP DIM-10 150746-1060-ND - WIRELESS LIGHTING CONTROL SWITCH746-1061-ND - SNAP DIM-10 007 |
|---|
| Other Names | 553-1476Q3288548AW1038-ND |
|---|
