| Part Number | CC1070RSQ |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC SNGL CHIP RF TX LP 20-QFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transmitters |
|---|
| Product Training Modules |
RF: RFID Technology and Applications
|
|---|
| Design Resources |
Development Tool Selector
|
|---|
| Manufacturer Product Page |
CC1070RSQ Specifications
|
|---|
| Standard Package | 490 |
|---|
| Packaging | Tube |
|---|
| Frequency | 402MHz ~ 470MHz, 804MHz ~ 940MHz |
|---|
| Applications | ISM |
|---|
| Modulation or Protocol | ASK, FSK, GFSK, OOK |
|---|
| Data Rate (Max) | 153.6 kBaud |
|---|
| Power - Output | -20dBm ~ 10dBm |
|---|
| Current - Transmitting | 33.1mA |
|---|
| Data Interface | PCB, Surface Mount |
|---|
| Antenna Connector | PCB, Surface Mount |
|---|
| Memory Size | - |
|---|
| Features | - |
|---|
| Voltage - Supply | 2.3 V ~ 3.6 V |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|

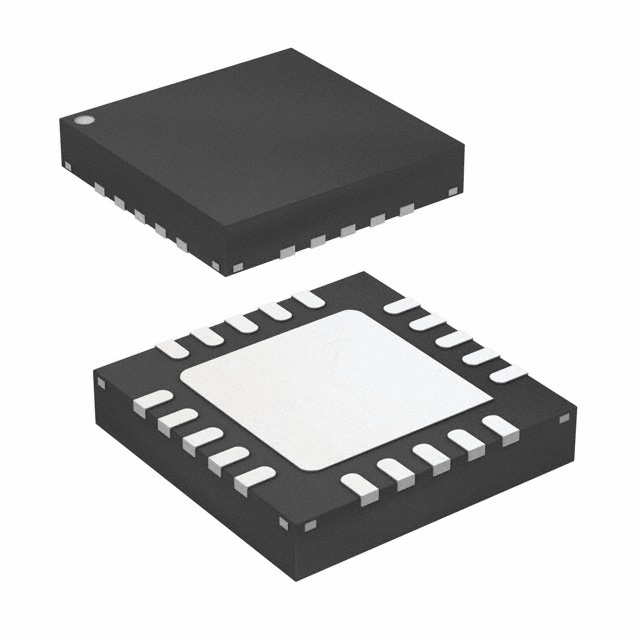

| Package / Case | 20-QFN |
|---|
| For Use With | CC1070EM-433-ND - MODULE EVAL FOR CC1070 433MHZCC1070EM-868-ND - MODULE EVAL FOR CC1070 868MHZ |
|---|
| Other Names | 296-25930-5CC1070RSQ-ND |
|---|
