| Part Number | AD8345AREZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC QUADRATURE MOD 250MHZ 16TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 505 |
| Datasheet | AD8345AREZ |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
AD8345AREZ
-
- USD 10.01
Product Details
| Part Number | AD8345AREZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC QUADRATURE MOD 250MHZ 16TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | RF/IF and RFID |
| Series | - |
| Family | RF Modulators |
| EDA / CAD Models | Download from Accelerated Designs |
| Standard Package | 96 |
| Packaging | Tube |
| Function | Modulator |
| LO Frequency | 250MHz ~ 1GHz |
| RF Frequency | 140MHz ~ 1GHz |
| P1dB | 2.5dBm |
| Noise Floor | -155dBm/Hz |
| Output Power | 2dBm |
| Current - Supply | 78mA |
| Voltage - Supply | 2.7 V ~ 5.5 V |
| Test Frequency | 800MHz |

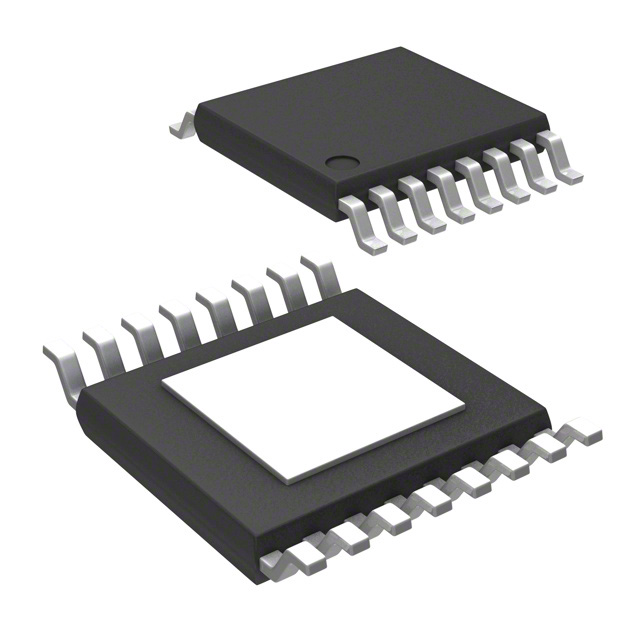

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Online Catalog | Modulators |
| For Use With | AD8345-EVALZ-ND - BOARD EVAL FOR AD8345 |
