| Part Number | ADL5372ACPZ-R7 |
|---|
| Manufacturer | Analog Devices Inc. |
|---|

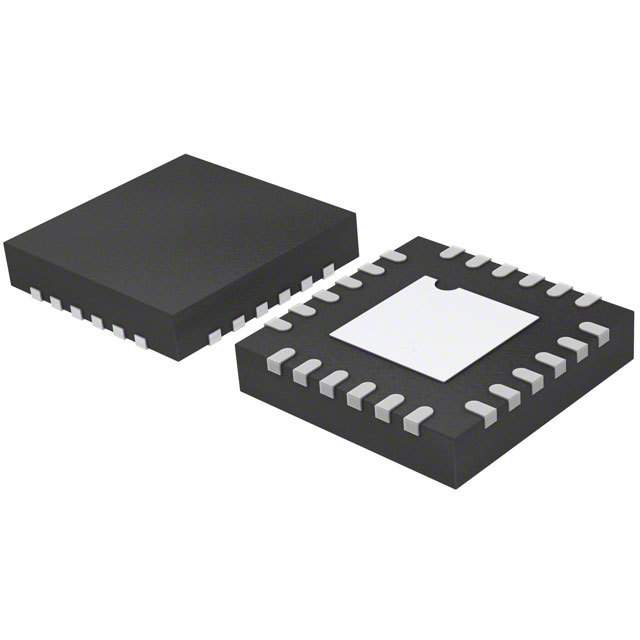

| Description | IC QUADRA MOD 1.5/2.5GHZ 24LFCSP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Modulators |
|---|
| Mfg Application Notes |
RF Signal Source Solutions
|
|---|
| Design Resources |
Interfacing ADL5372 to AD9779A Dual-Channel, 1 GSPS High Speed DAC (CN0018)
|
|---|
| PCN Design/Specification |
ADL5371/2 ESD Robustness 14/Jul/2009
|
|---|
| PCN Assembly/Origin |
Assembly Site Transfer 03/Feb/2014
Assembly Site Revision A 05/May/2014
|
|---|
| Standard Package | 1,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Function | Modulator |
|---|
| LO Frequency | 1.5GHz ~ 2.5GHz |
|---|
| RF Frequency | 1.5GHz ~ 2.5GHz |
|---|
| P1dB | 14.2dBm |
|---|
| Noise Floor | -158dBm/Hz |
|---|
| Output Power | 7.1dBm |
|---|
| Current - Supply | 165mA |
|---|
| Voltage - Supply | 4.75 V ~ 5.25 V |
|---|
| Test Frequency | 1.9GHz |
|---|
| Package / Case | 24-VFQFN Exposed Pad, CSP |
|---|
| Online Catalog | Modulators |
|---|
| For Use With | ADL5372-EVALZ-ND - EVAL BOARD FOR ADL5372AD9142A-M5372-EBZ-ND - EVAL BOARD FOR AD9142 |
|---|
| Other Names | ADL5372ACPZ-R7TRADL5372ACPZR7 |
|---|
