| Part Number | MAX2205EBS+T |
|---|
| Manufacturer | Maxim Integrated |
|---|
| Description | IC RF POWER DETECTOR 4UCSP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Detectors |
|---|
| Mfg Application Notes |
MAX2205-Detecting High Peak-to-Average Ratio Signals
General Layout Guidelines for RF and Mixed-Signal PCBs
RF Basics
|
|---|
| Product Training Modules |
Lead (SnPb) Finish for COTS
Long-Term Supply Program
|
|---|
| PCN Obsolescence/ EOL |
EOL 17/Dec/2015
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Frequency | 800MHz ~ 2GHz |
|---|
| RF Type | Cellular, CDMA |
|---|
| Input Range | 6dBm ~ 31dBm |
|---|
| Accuracy | ±0.3dB |
|---|
| Voltage - Supply | 2.7 V ~ 5 V |
|---|
| Current - Supply | 2mA |
|---|

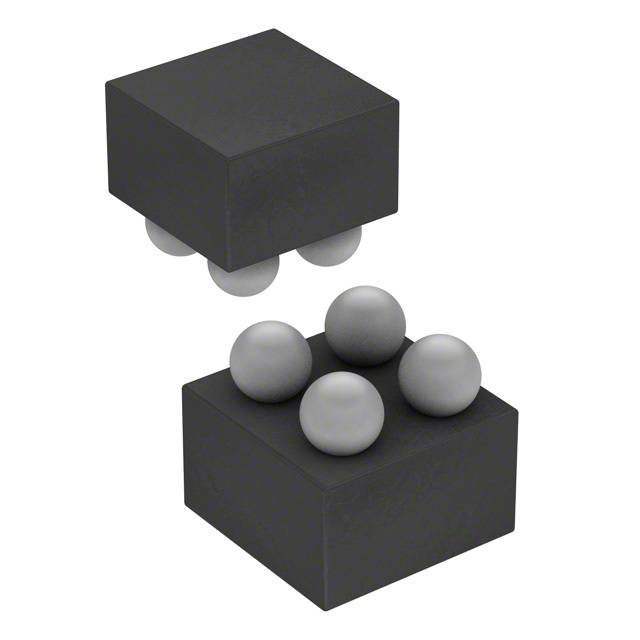

| Package / Case | 4-WFBGA, CSPBGA |
|---|
| Other Names | MAX2205EBS+TCT |
|---|
