| Part Number | MAX2016ETI+ |
|---|
| Manufacturer | Maxim Integrated |
|---|
| Description | IC DETECT/CNTRL LOG 28-TQFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Detectors |
|---|
| Mfg Application Notes |
Techniques for Measuring RF Gain Using the MAX2016
General Layout Guidelines for RF and Mixed-Signal PCBs
Measure a Voltage Standing Wave Ratio (VSWR) to Quantify Transmission Line Imperfections
|
|---|
| Product Training Modules |
Lead (SnPb) Finish for COTS
Long-Term Supply Program
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 60 |
|---|
| Packaging | Tube |
|---|
| Frequency | 30kHz ~ 2.5GHz |
|---|
| RF Type | Cellular, GSM, EDGE, CDMA |
|---|
| Input Range | -70dBm ~ 10dBm |
|---|
| Accuracy | ±1dB |
|---|
| Voltage - Supply | 2.7 V ~ 5.25 V |
|---|
| Current - Supply | 16mA |
|---|

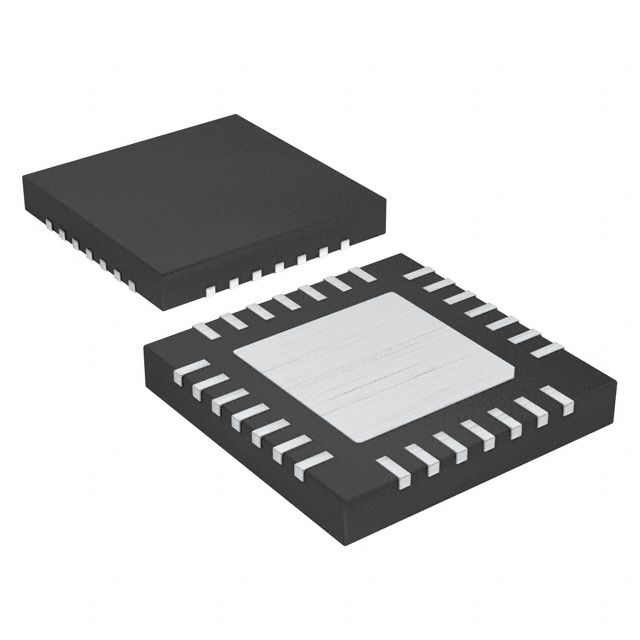

| Package / Case | 28-WFQFN Exposed Pad |
|---|
| Online Catalog | Power Detectors |
|---|
