| Part Number | BP5726-15 |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | AC/DC CONVERTER 15V 800MA 12W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | BP5726-15 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

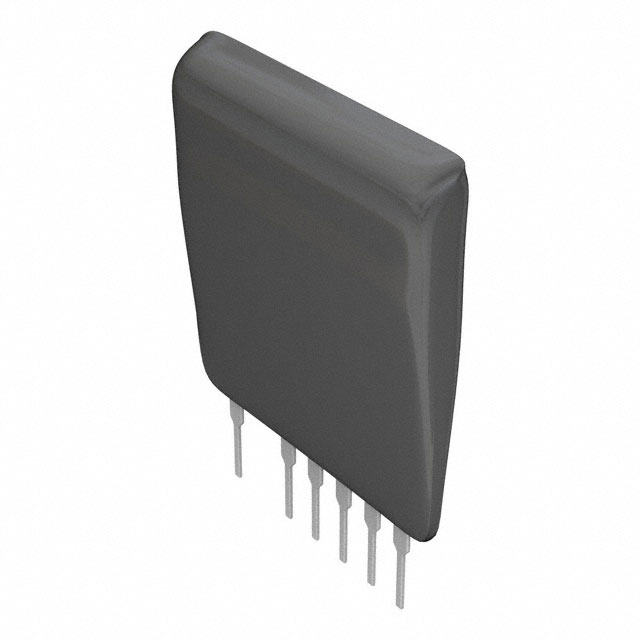

BP5726-15
-
- USD 2.38
Product Details
| Part Number | BP5726-15 |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | AC/DC CONVERTER 15V 800MA 12W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Power Supplies - Board Mount |
| Series | - |
| Family | AC DC Converters |
| Standard Package | 150 |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 276 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 800mA |
| Power (Watts) | 12W |
| Power Supply Type | Switching (Closed Frame) |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 80°C |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Size / Dimension | 0.89" L x 0.31" W x 1.07" H (22.5mm x 7.8mm x 27.1mm) |
| Power (Watts) - Max | 12W |
| Line Regulation | 30mV |
| Load Regulation | 80mV |
| Approvals | - |
| Weight | - |
| Other Names | BP572615 |
