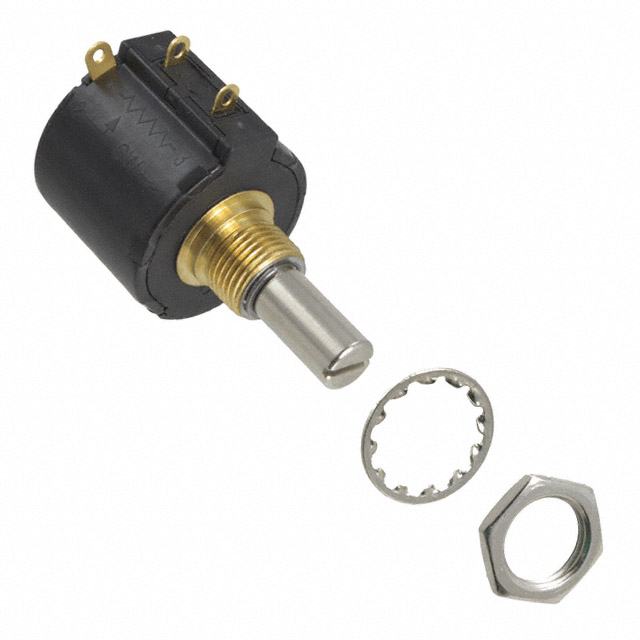

| Part Number | 3549H-1AA-103B |
|---|
| Manufacturer | Bourns Inc. |
|---|
| Description | POT 10K OHM 2W HYBRITRON LINEAR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Potentiometers, Variable Resistors |
|---|
| Series | Hybritron? 3549 |
|---|
| Family | Rotary Potentiometers, Rheostats |
|---|
| PCN Design/Specification |
Multiple Models Varnish Process 18/Jan/2012
Models 3549,3548,3547 01/Jan/2013
|
|---|
| PCN Packaging |
Multiple Devices Jul/2015
|
|---|
| PCN Other |
Multiple Changes 01/Dec/2012
|
|---|
| Standard Package | 5 |
|---|
| Packaging | Tray |
|---|
| Taper | Linear |
|---|
| Resistance (Ohms) | 10k |
|---|
| Tolerance | ±10% |
|---|
| Number of Gangs | 1 |
|---|
| Built in Switch | None |
|---|
| Power (Watts) | 2W |
|---|
| Temperature Coefficient | ±100ppm/°C |
|---|
| Number of Turns | 10 |
|---|
| Rotation | 3600° |
|---|
| Adjustment Type | - |
|---|
| Resistive Material | Hybritron? |
|---|
| Termination Style | Solder Lug |
|---|
| Actuator Type | Slotted |
|---|
| Actuator Length | 0.813" (20.64mm) |
|---|
| Actuator Diameter | 0.250" (6.35mm) |
|---|
| Bushing Thread | 3/8-32 |
|---|
| Mounting Type | Panel Mount |
|---|
