| Part Number | HCPL-3140-560E |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|
| Description | OPTOISO 3.75KV GATE DRVR 8DIP GW |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Isolators - Gate Drivers |
|---|
| PCN Design/Specification |
Mult Device Design Changes 10/Nov/2015
|
|---|
| PCN Packaging |
Multiple Devices Marking/Labeling 07/Aug/2013
Marking/Labeling Revision B 14/Jan/2014
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Technology | Optical Coupling |
|---|
| Number of Channels | 1 |
|---|
| Voltage - Isolation | 3750Vrms |
|---|
| Common Mode Transient Immunity (Min) | 25kV/μs |
|---|
| Propagation Delay tpLH / tpHL (Max) | 700ns, 700ns |
|---|
| Pulse Width Distortion (Max) | - |
|---|
| Rise / Fall Time (Typ) | 50ns, 50ns |
|---|
| Current - Output High, Low | 400mA, 400mA |
|---|
| Current - Peak Output | 600mA |
|---|
| Voltage - Forward (Vf) (Typ) | 1.5V |
|---|
| Current - DC Forward (If) (Max) | 25mA |
|---|
| Voltage - Supply | 10 V ~ 30 V |
|---|
| Operating Temperature | -40°C ~ 100°C |
|---|
| Mounting Type | Surface Mount |
|---|

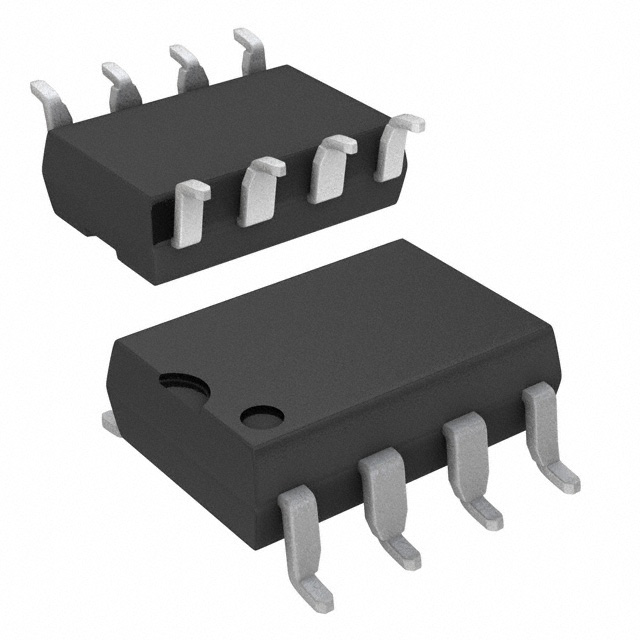

| Package / Case | 8-SMD, Gull Wing |
|---|
| Supplier Device Package | 8-DIP Gull Wing |
|---|
| Approvals | CSA, IEC/EN/DIN, UR |
|---|
