| Part Number | PKM22EPPH4002-B0 |
|---|---|
| Manufacturer | Murata Electronics North America |

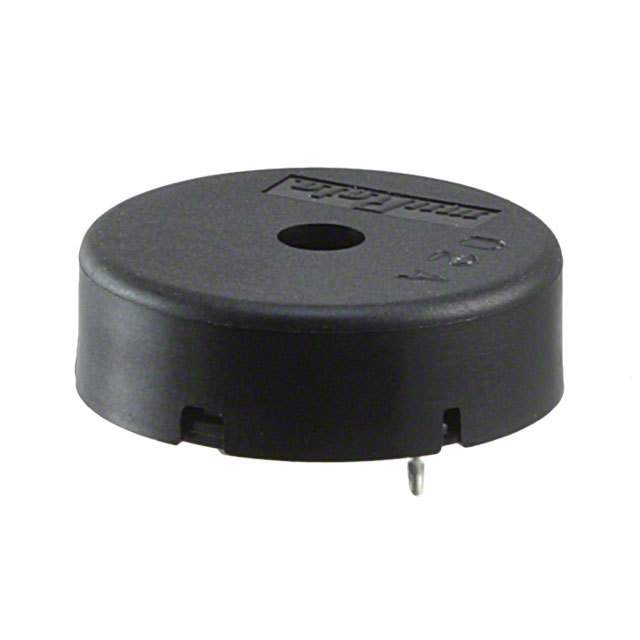

| Description | BUZZER PIEZO 3V 22MM RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1,092 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
PKM22EPPH4002-B0
-
- USD 1.25
Product Details
| Part Number | PKM22EPPH4002-B0 |
|---|---|
| Manufacturer | Murata Electronics North America |
| Description | BUZZER PIEZO 3V 22MM RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Audio Products |
| Series | PK |
| Family | Buzzers |
| Standard Package | 900 |
| Packaging | Bulk |
| Driver Circuitry | Transducer, Externally Driven |
| Technology | Piezo |
| Input Type | peak-peak Signal |
| Voltage - Rated | 3Vp-p |
| Voltage Range | 30V (Max) |
| Frequency | 4kHz |
| Operating Mode | Continuous |
| Sound Pressure Level | 75dB @ 4V, 10cm |
| Current - Supply | - |
| Operating Temperature | -20°C ~ 70°C |
| Washable | No |
| Port Location | Top |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 22.0mm Dia x 8.7mm H |
| Capacitance @ Frequency | 12000pF @ 1kHz |
| Online Catalog | PK Series |
| Other Names | 490-7031 PKM22EPPH4002-B0-ND PKM22EPPH4002B0 |
