| Part Number | 54200C |
|---|---|
| Manufacturer | Murata Power Solutions Inc. |
| Description | XFRMR CURR SENSE 15A 1:1:200 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | 54200C |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

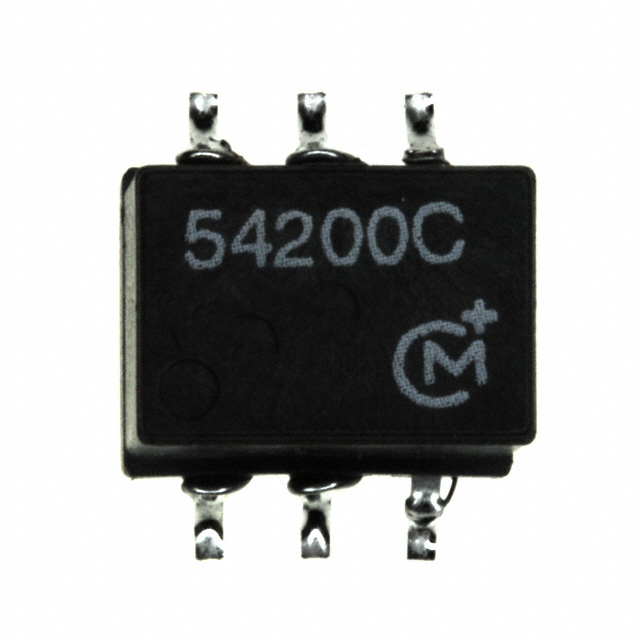

54200C
-
- USD 0.00
Product Details
| Part Number | 54200C |
|---|---|
| Manufacturer | Murata Power Solutions Inc. |
| Description | XFRMR CURR SENSE 15A 1:1:200 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Transformers |
| Series | 5400 |
| Family | Current Sense Transformers |
| Product Training Modules | Magnetics Products Offering |
| Standard Package | 1 |
| Turns Ratio - Primary:Secondary | 1 : 1 : 200 |
| Frequency | 50kHz ~ 500kHz |
| Inductance | 60mH |
| Current Rating | 15A |
| DC Resistance (DCR) | 7 mOhm Primary, 6.6 Ohm Secondary |
| E.T. | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 10.80mm L x 9.00mm W |
| Height - Seated (Max) | 8.20mm |
| Termination Style | Gull Wing |
| Other Names | 811-1199-1 |
