| Part Number | 3FD-212 |
|---|---|
| Manufacturer | Tamura |
| Description | XFRMR LAMINATED 1.1VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4,912 |
| Datasheet | 3FD-212 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

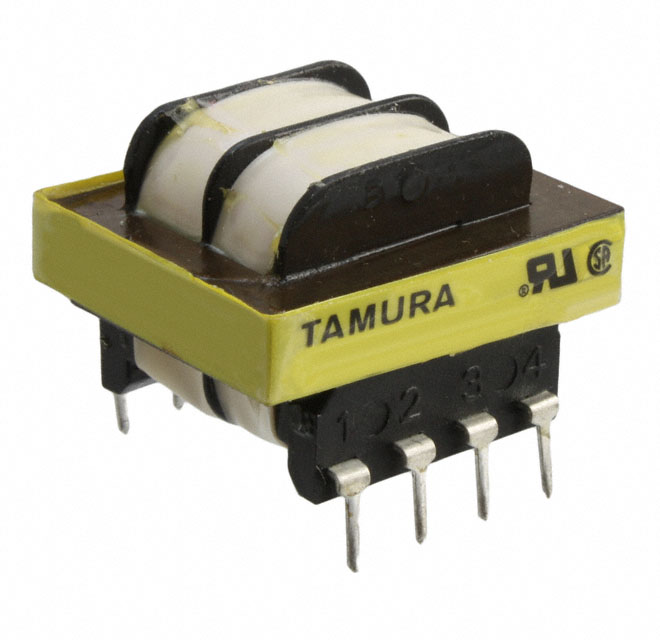

3FD-212
-
- USD 5.25
Product Details
| Part Number | 3FD-212 |
|---|---|
| Manufacturer | Tamura |
| Description | XFRMR LAMINATED 1.1VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Transformers |
| Series | 3FD-2xx |
| Family | Power Transformers |
| Standard Package | 80 |
| Type | Laminated Core |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V |
| Current - Output (Max) | Parallel 180mA, Series 90mA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 1.1 VA |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Size / Dimension | 35.56mm L x 31.00mm W |
| Height - Seated (Max) | 38.00mm |
| Voltage - Isolation | 2500Vrms |
| Online Catalog | 3FD/3FS Series |
| Other Names | 3FD212MT2101PSD2-12PSD2-12(BOX)PSD2-12(BULK) |
