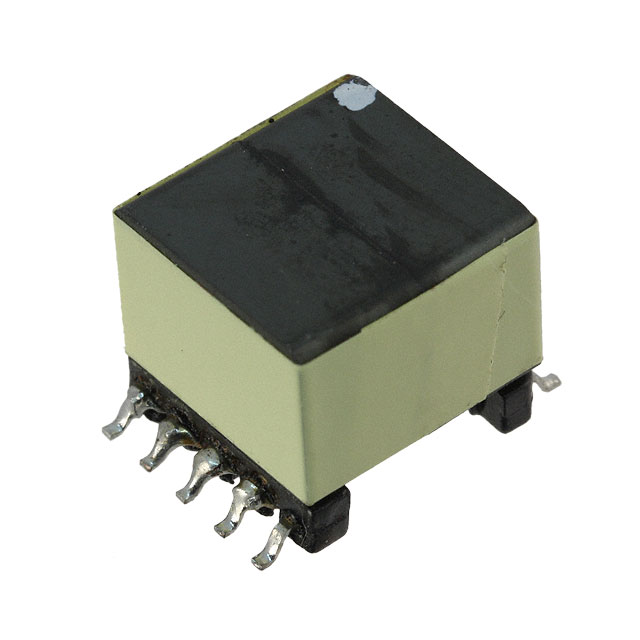

| Part Number | 7491199501 |
|---|
| Manufacturer | Wurth Electronics Inc |
|---|
| Description | TRANS FLYBACK POE 127UH SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Transformers |
|---|
| Series | WE-PoE |
|---|
| Family | Switching Converter, SMPS Transformers |
|---|
| 3D Model |
7491199zzz.igs
7491199zzz.stp
7491199zzz.wrl
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | For DC/DC Converters |
|---|
| Applications | Power Over Ethernet (PoE) |
|---|
| Intended Chipset | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 |
|---|
| Voltage - Primary | 34 ~ 72V |
|---|
| Voltage - Auxillary | 12V @ 15mA |
|---|
| Voltage - Isolation | 1500Vrms |
|---|
| Frequency | - |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Size / Dimension | 13.50mm L x 17.75mm W |
|---|
| Height - Seated (Max) | 12.50mm |
|---|
| Chipset Manufacturer | - |
|---|
| Online Catalog | WE-PoE- Series |
|---|
| For Use With | 296-18669-2-ND - IC INTEG IEEE PD CTRLR 20-HTSSOP296-18669-1-ND - IC INTEG IEEE PD CTRLR 20-HTSSOP296-18669-6-ND - IC INTEG IEEE PD CTRLR 20-HTSSOPLTC4267CGN-3#PBF-ND - IC POE 802.3AF PD W/REG 16-SSOPLTC4267CGN#PBF-ND - IC POE 802.3AF PD W/REG 16-SSOPLTC4267CDHC-3#PBF-ND - IC POE 802.3AF PD W/REG 16 |
|---|
| Other Names | 732-2433-1 |
|---|
