| Part Number | PE-64978NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR CURR SENSE 500KHZ T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 146 |
| Datasheet | PE-64978NL |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

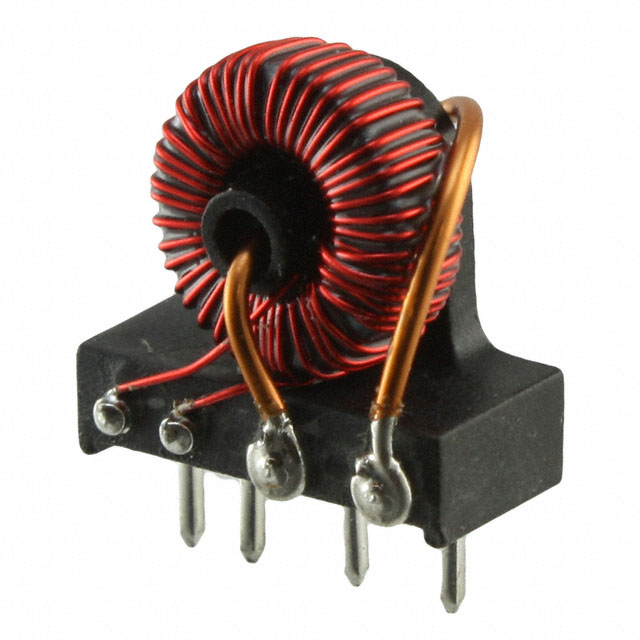

PE-64978NL
-
- USD 9.78
Product Details
| Part Number | PE-64978NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR CURR SENSE 500KHZ T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Transformers |
| Series | THT |
| Family | Current Sense Transformers |
| Standard Package | 35 |
| Turns Ratio - Primary:Secondary | 1 : 50 |
| Frequency | 200kHz ~ 500kHz |
| Inductance | 4mH |
| Current Rating | 20A |
| DC Resistance (DCR) | 6 mOhm Primary, 240 mOhm Secondary |
| E.T. | - |
| Mounting Type | Through Hole |
| Size / Dimension | 13.97mm L x 9.65mm W |
| Height - Seated (Max) | 14.73mm |
| Termination Style | PC Pin |
| Online Catalog | THT |
| Other Names | 553-1889-5PE-64978NL-NDPE64978NL |
