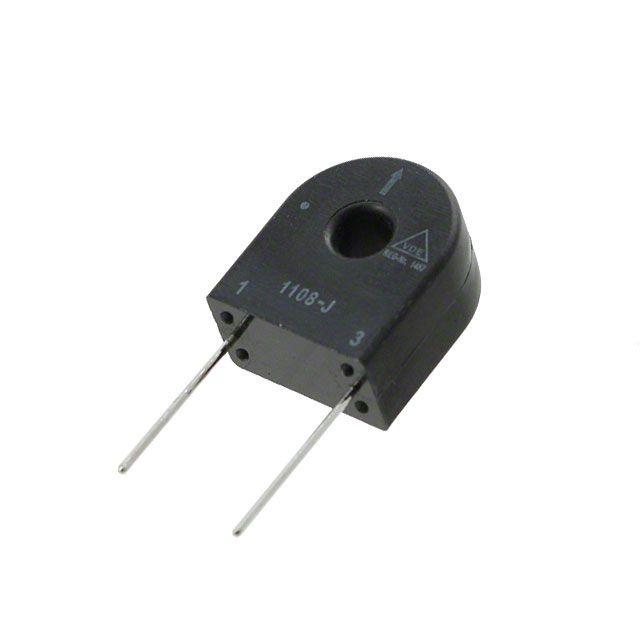

| Part Number | PE-51686NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | INDUCTOR CURR SENSE 5.0MH T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 834 |
| Datasheet | PE-51686NL |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
PE-51686NL
-
- USD 3.09
Product Details
| Part Number | PE-51686NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | INDUCTOR CURR SENSE 5.0MH T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Transformers |
| Series | THT |
| Family | Current Sense Transformers |
| Standard Package | 60 |
| Turns Ratio - Primary:Secondary | 1 : 50 |
| Frequency | 20kHz ~ 200kHz |
| Inductance | 5mH |
| Current Rating | 20A |
| DC Resistance (DCR) | 50 Ohm Primary, 700 mOhm Secondary |
| E.T. | - |
| Mounting Type | Through Hole |
| Size / Dimension | 22.86mm L x 17.78mm W |
| Height - Seated (Max) | 17.78mm |
| Termination Style | PC Pin |
| Online Catalog | THT |
| Other Names | PE-51686NL-NDPE51686NL |
