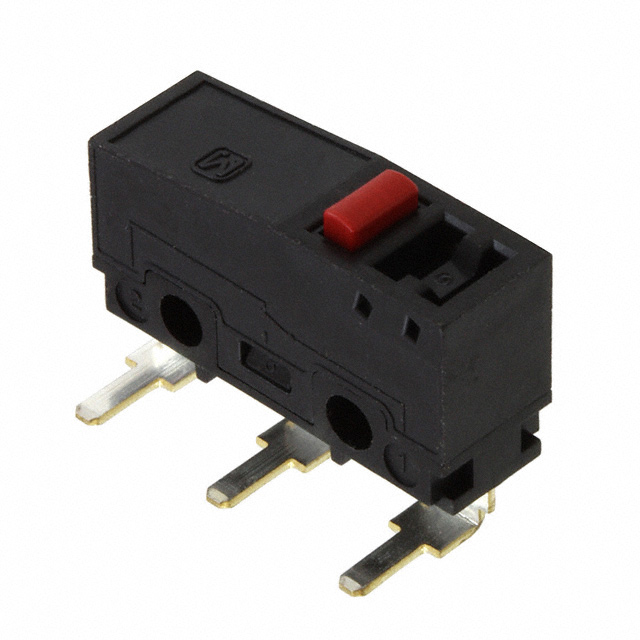

| Part Number | AV32049 |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | SWITCH FS PIN PLUNGER SILVER SLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | AV3 |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Standard Package | 500 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 3A (AC/DC) |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Round (Pin Plunger) |
|---|
| Mounting Type | Chassis Mount |
|---|
| Termination Style | Solder Lug |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Operating Force, Torque | 100gf |
|---|
| Release Force | 15gf |
|---|
| Pretravel | 0.024" (0.6mm) |
|---|
| Differential Travel | 0.004" (0.1mm) |
|---|
| Overtravel | 0.015" (0.4mm) |
|---|
| Operating Position | 0.330" (8.4mm) |
|---|
| Mechanical Life | 500,000 Cycles |
|---|
| Electrical Life | 50,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
