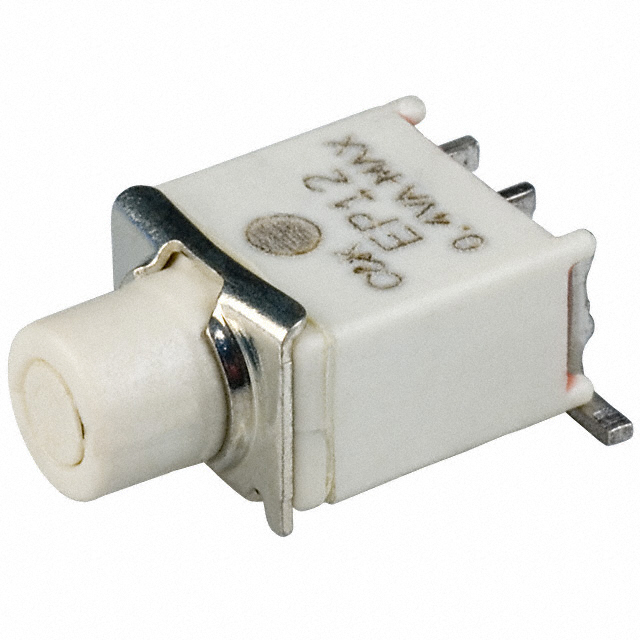

| Part Number | EP12FPD1SAPE |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH PUSH SPDT 0.4VA 20V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | EP |
|---|
| Family | Pushbutton Switches |
|---|
| Product Training Modules |
Sealed Switch – Part 1
Sealed Switch – Part 2
Sealed Switch – Part 3
Sealed Switch – Part 4
Introduction to Electromechanical Switches
|
|---|
| PCN Design/Specification |
EP Series Material 01/Jul/2009
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Type | Standard |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 0.4VA (AC/DC) |
|---|
| Voltage Rating - AC | 20V |
|---|
| Voltage Rating - DC | 20V |
|---|
| Actuator Type | Round, Plunger, Flush |
|---|
| Color - Actuator/Cap | White |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination Style | Gull Wing |
|---|
| Ingress Protection | IP57 - Dust Protected, Waterproof |
|---|
| Features | Epoxy Sealed Terminals |
|---|
| Panel Cutout Dimensions | - |
|---|
| Operating Temperature | -30°C ~ 85°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 30,000 Cycles |
|---|
| Online Catalog | EP Series |
|---|
| Other Names | CKN9053DKR |
|---|
