| Part Number | AS1D-2M-10-Z |
|---|---|
| Manufacturer | Copal Electronics Inc. |
| Description | SWITCH SLIDE SPDT 50MA 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160 18,300 - Factory Stock |
| Datasheet | AS1D-2M-10-Z |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

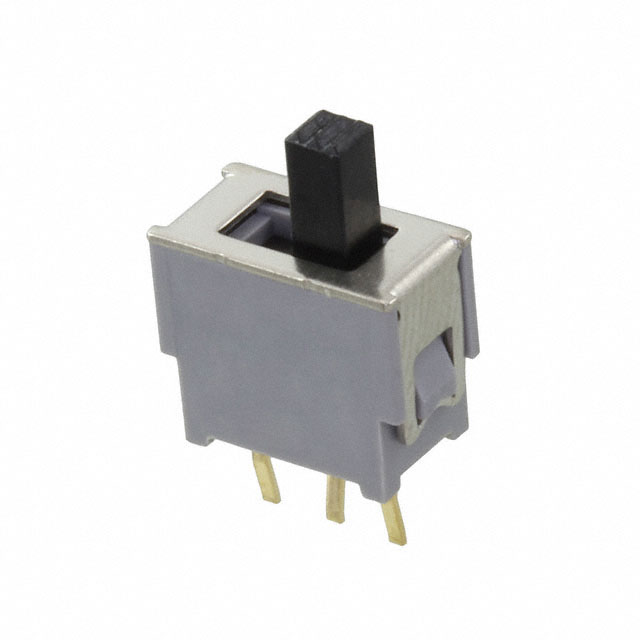

AS1D-2M-10-Z
-
- USD 2.23
Product Details
| Part Number | AS1D-2M-10-Z |
|---|---|
| Manufacturer | Copal Electronics Inc. |
| Description | SWITCH SLIDE SPDT 50MA 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | AS |
| Family | Slide Switches |
| 3D Model | AS1D-2M-10-Z |
| Standard Package | 100 |
| Packaging | Tray |
| Circuit | SPDT |
| Contact Timing | Not Specified |
| Switch Function | On-On |
| Current Rating | 50mA (AC/DC) |
| Voltage Rating - AC | 48V |
| Voltage Rating - DC | 48V |
| Actuator Type | Standard |
| Actuator Length | 4.30mm |
| Contact Material | - |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Features | - |
| Actuator Material | - |
| Switch Travel | 2.20mm |
| Operating Temperature | -20°C ~ 85°C |
| Mechanical Life | - |
| Electrical Life | 10,000 Cycles |
| Operating Force | 70 ~ 500gf |
| Other Names | 563-1579AS1D-2M-10-Z-ND |
