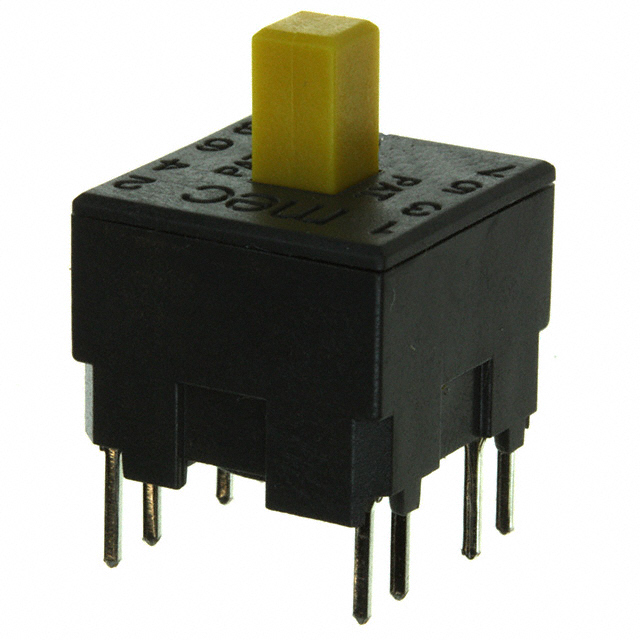

| Part Number | 15500 |
|---|
| Manufacturer | MEC Switches |
|---|
| Description | SWITCH PUSH 4PST 0.25A 120V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | Unimec? |
|---|
| Family | Pushbutton Switches |
|---|
| Product Training Modules |
Switches
|
|---|
| PCN Obsolescence/ EOL |
Low-Temperature Switches 18/Jul/2014
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Type | Standard |
|---|
| Circuit | 4PST (2-NO, 2-NC) |
|---|
| Switch Function | On-Mom, Off-Mom |
|---|
| Current Rating | 250mA (AC) |
|---|
| Voltage Rating - AC | 120V |
|---|
| Voltage Rating - DC | - |
|---|
| Actuator Type | Plunger for Cap |
|---|
| Color - Actuator/Cap | Yellow |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
|---|
| Features | - |
|---|
| Panel Cutout Dimensions | - |
|---|
| Operating Temperature | -40°C ~ 75°C |
|---|
| Mechanical Life | 1,500,000 Cycles |
|---|
| Electrical Life | - |
|---|
| Associated Product | 679-1968-ND - CAP PUSHBUTTON RECTANGULAR GRAY679-1995-ND - BEZEL SWITCH BLACK679-1960-ND - SWITCH EXTENDER679-2007-ND - BEZEL SWITCH GREY679-1973-ND - CAP PUSHBUTTON RECTANGULAR RED679-1990-ND - BEZEL SWITCH YELLOW679-2015-ND - CAP PUSHBUTTON RECTANGULAR GRAY679-2013-ND - CAP PUSHBUTTON RECTANGULAR |
|---|
| Other Names | 679-1963 |
|---|
