| Part Number | R20407RR03Q |
|---|---|
| Manufacturer | C&K Components |
| Description | SWITCH ROTARY DP SLIDE 4POS 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 184 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
R20407RR03Q
-
- USD 4.67
Product Details
| Part Number | R20407RR03Q |
|---|---|
| Manufacturer | C&K Components |
| Description | SWITCH ROTARY DP SLIDE 4POS 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | R |
| Family | Rotary Switches |
| Product Training Modules | Introduction to Electromechanical Switches |
| Standard Package | 1 |
| Number of Positions | 4 |
| Index Stops | Fixed |
| Number of Decks | 1 |
| Number of Poles per Deck | 2 |
| Circuit per Deck | DP4T |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating | 5A (AC), 500mA (DC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 125V |
| Actuator Type | Flatted (6.35mm Dia) |

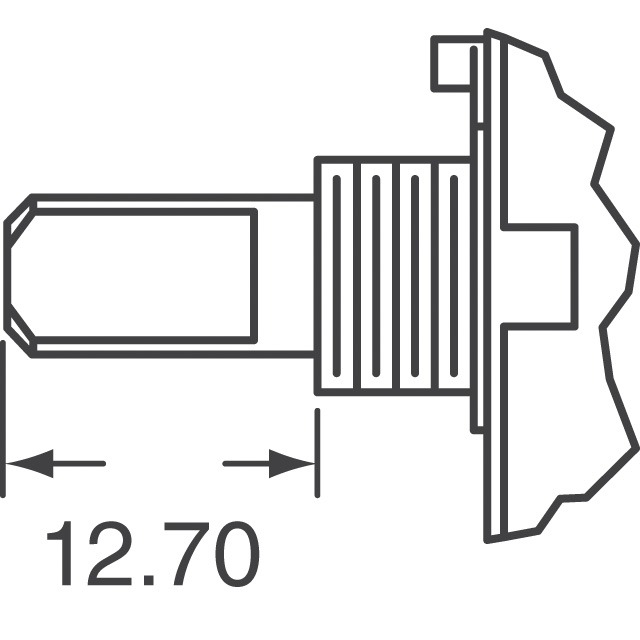

| Actuator Length | 12.70mm |
| Angle of Throw | 36° |
| Contact Material | Copper |
| Contact Finish | Silver |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Features | - |
| Depth Behind Panel | 14.61mm |
| Panel Cutout Dimensions | Circular - 9.78mm Dia |
| Operating Force, Torque | - |
| Online Catalog | R Series ROTA-SLIDE? |
| Other Names | *R20407RR03QCKN9482 |
