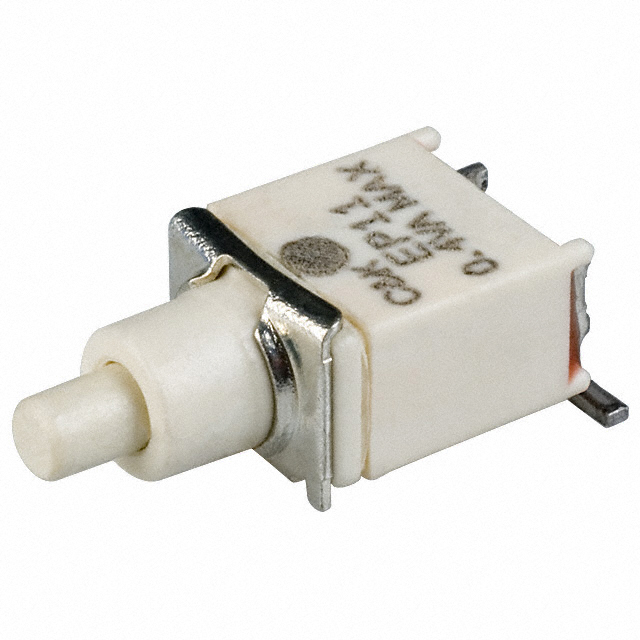

| Part Number | EP11SD1SAKE |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH PUSH SPST-NO 0.4VA 20V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | EP |
|---|
| Family | Pushbutton Switches |
|---|
| PCN Design/Specification |
EP Series Material 01/Jul/2009
|
|---|
| Standard Package | 600 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | Standard |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Current Rating | 0.4VA (AC/DC) |
|---|
| Voltage Rating - AC | 20V |
|---|
| Voltage Rating - DC | 20V |
|---|
| Actuator Type | Round, Plunger |
|---|
| Color - Actuator/Cap | White |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination Style | Gull Wing |
|---|
| Ingress Protection | IP57 - Dust Protected, Waterproof |
|---|
| Features | Epoxy Sealed Terminals |
|---|
| Panel Cutout Dimensions | - |
|---|
| Operating Temperature | -30°C ~ 85°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 60,000 Cycles |
|---|
| Associated Product | CKN1749-ND - CAP PUSHBUTTON ROUND REDCKN1748-ND - CAP PUSHBUTTON ROUND BLACK508101000-ND - CAP PUSHBUTTON ROUND WHITE |
|---|
| Other Names | CKN4055TREP11SD1SAKE(T&R) |
|---|
