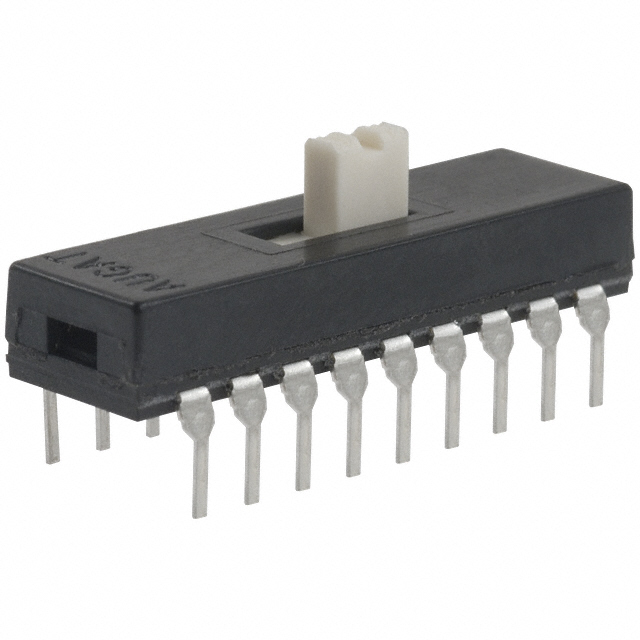

| Part Number | 3-1825010-7 |
|---|
| Manufacturer | TE Connectivity Alcoswitch Switches |
|---|
| Description | SWITCH SLIDE 6PDT 300MA 115V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | ASE |
|---|
| Family | Slide Switches |
|---|
| Featured Product |
TE Connectivity Alcoswitch Switches
|
|---|
| 3D Model |
3-1825010-7.pdf
|
|---|
| Standard Package | 21 |
|---|
| Packaging | Bulk |
|---|
| Circuit | 6PDT |
|---|
| Contact Timing | Shorting (MBB) |
|---|
| Switch Function | On-On |
|---|
| Current Rating | 300mA (AC) |
|---|
| Voltage Rating - AC | 115V |
|---|
| Voltage Rating - DC | - |
|---|
| Actuator Type | Standard |
|---|
| Actuator Length | 2.79mm |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Silver |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Features | - |
|---|
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
|---|
| Switch Travel | 2.79mm |
|---|
| Operating Temperature | -40°C ~ 80°C |
|---|
| Mechanical Life | 15,000 Cycles |
|---|
| Electrical Life | 15,000 Cycles |
|---|
| Operating Force | 950gf |
|---|
| Online Catalog | ASE Series |
|---|
| Other Names | 450-1559ASE6204ASE6204-ND |
|---|
