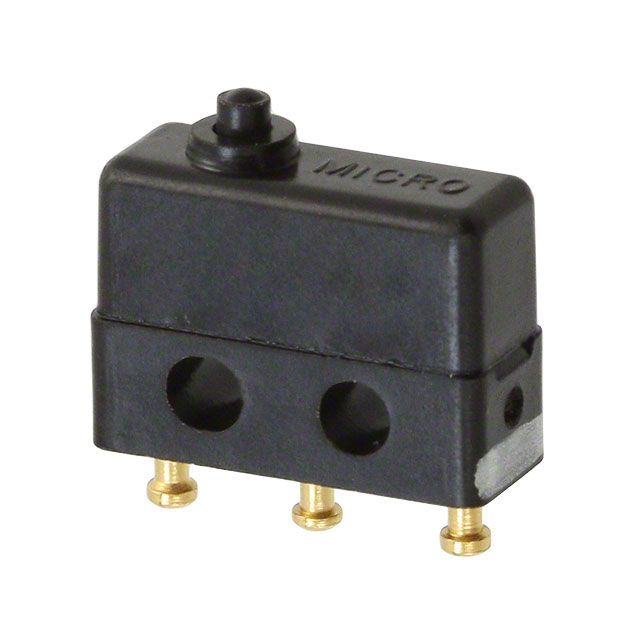

| Part Number | 4SX1-T |
|---|
| Manufacturer | Honeywell Sensing and Control |
|---|
| Description | SW LIMIT SPDT 7A PIN PLNGR 250V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | SX |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Product Training Modules |
Electromechanical Switch Technology
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 7A (AC/DC) |
|---|
| Voltage Rating - AC | 250V |
|---|
| Voltage Rating - DC | 28V |
|---|
| Actuator Type | Round (Pin Plunger) |
|---|
| Mounting Type | Chassis Mount |
|---|
| Termination Style | Solder Turret |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Operating Force, Torque | 141.7gf |
|---|
| Release Force | 28gf |
|---|
| Pretravel | 0.020" (0.5mm) |
|---|
| Differential Travel | 0.005" (0.13mm) |
|---|
| Overtravel | 0.004" (0.1mm) |
|---|
| Operating Position | 0.320" (8.13mm) |
|---|
| Mechanical Life | 1,000,000 Cycles |
|---|
| Electrical Life | - |
|---|
| Operating Temperature | -55°C ~ 204°C |
|---|
| Online Catalog | MICRO SWITCH? SX Series |
|---|
| Other Names | 480-37294SX1-T-ND4SX1T |
|---|
