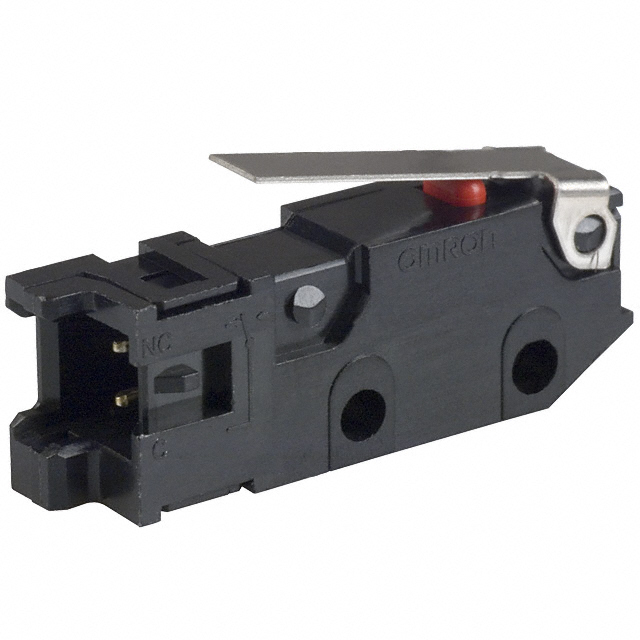

| Part Number | D3M-01K1 |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SWITCH LEVER SPST-NC 0.1A 30V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | D3M |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Snap Switches
Medical Solutions
|
|---|
| Standard Package | 500 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPST-NC |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 100mA (DC) |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Lever, Straight |
|---|
| Mounting Type | Chassis Mount |
|---|
| Termination Style | Connector |
|---|
| Ingress Protection | IP40 |
|---|
| Features | - |
|---|
| Operating Force, Torque | 51gf |
|---|
| Release Force | 6gf |
|---|
| Pretravel | - |
|---|
| Differential Travel | 0.031" (0.8mm) |
|---|
| Overtravel | 0.047" (1.2mm) |
|---|
| Operating Position | 0.394" (10.0mm) |
|---|
| Mechanical Life | 500,000 Cycles |
|---|
| Electrical Life | 200,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Online Catalog | D3M Series |
|---|
| Associated Product | 455-1903-ND - CONN HOUSING XA 2POS 2.5MM |
|---|
| Other Names | D3M01K1SW879 |
|---|
