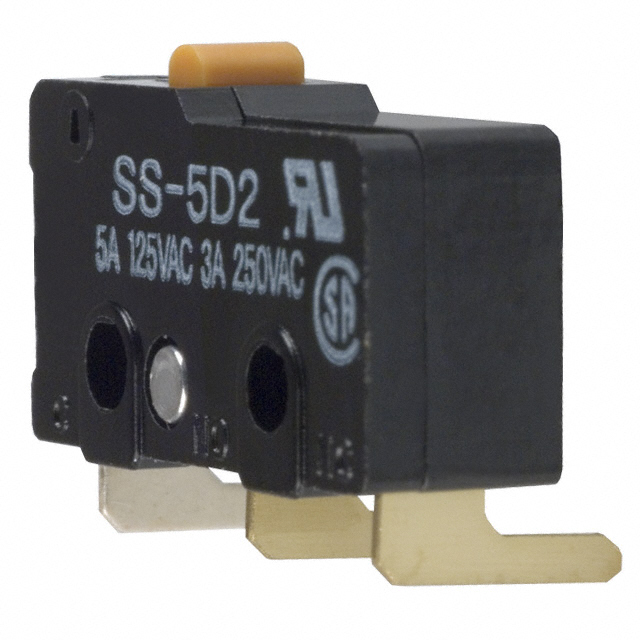

| Part Number | SS-5D2 |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SW SPDT 5A PIN PLUNGER PCB 125V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | SS |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Snap Switches
Medical Solutions
|
|---|
| Standard Package | 400 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 5A (AC), 4A (DC) |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Round (Pin Plunger) |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination Style | PC Pin |
|---|
| Ingress Protection | IP40 |
|---|
| Features | - |
|---|
| Operating Force, Torque | 150gf |
|---|
| Release Force | 25gf |
|---|
| Pretravel | 0.020" (0.5mm) |
|---|
| Differential Travel | 0.004" (0.1mm) |
|---|
| Overtravel | 0.020" (0.5mm) |
|---|
| Operating Position | 0.330" (8.4mm) |
|---|
| Mechanical Life | 30,000,000 Cycles |
|---|
| Electrical Life | 200,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Online Catalog | SS Series |
|---|
| Other Names | SS-5D2-NDSS5D2SS5M0035MSW869 |
|---|
