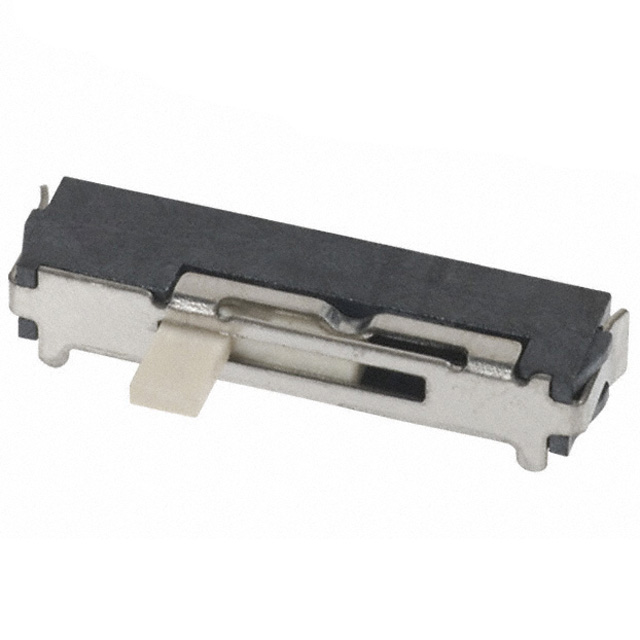

| Part Number | CSS-1310TB |
|---|
| Manufacturer | Copal Electronics Inc. |
|---|
| Description | SWITCH SLIDE SP3T 100MA 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | CSS |
|---|
| Family | Slide Switches |
|---|
| 3D Model |
CSS-1310TB
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Circuit | SP3T |
|---|
| Contact Timing | Non-Shorting (BBM) |
|---|
| Switch Function | On-On-On |
|---|
| Current Rating | 100mA (DC) |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 12V |
|---|
| Actuator Type | Standard |
|---|
| Actuator Length | 2.00mm |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination Style | Gull Wing |
|---|
| Features | - |
|---|
| Actuator Material | Liquid Crystal Polymer (LCP) |
|---|
| Switch Travel | 2.00mm |
|---|
| Operating Temperature | -20°C ~ 70°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 10,000 Cycles |
|---|
| Operating Force | 102 ~ 357gf |
|---|
| Online Catalog | CSS Series |
|---|
| Other Names | 563-1095-6 |
|---|
