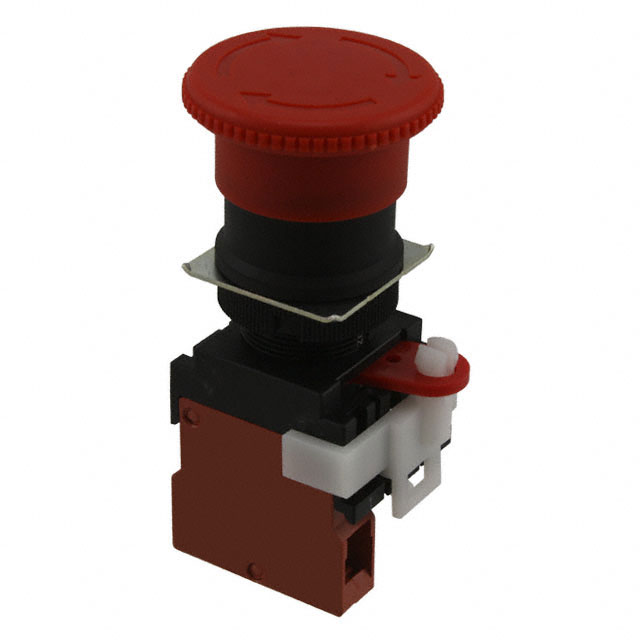

| Part Number | A22E-M-01 |
|---|
| Manufacturer | Omron Automation and Safety |
|---|
| Description | SWITCH PUSH SPST-NC 10A 110V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | A22E |
|---|
| Family | Pushbutton Switches |
|---|
| Featured Product |
Pushbuttons Selector Switches and Pilot Lights
|
|---|
| PCN Design/Specification |
A22E Series Feb/2010
Multiple Devices Nameplate May/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Type | Emergency Stop |
|---|
| Circuit | SPST-NC |
|---|
| Switch Function | On-Off |
|---|
| Current Rating | 10A (AC/DC) |
|---|
| Voltage Rating - AC | 110V |
|---|
| Voltage Rating - DC | 24V |
|---|
| Actuator Type | Round, Button, Mushroom |
|---|
| Color - Actuator/Cap | Red |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Panel Mount, Front |
|---|
| Termination Style | Screw Terminal |
|---|
| Ingress Protection | IP65 - Dust Tight, Oil and Water Resistant |
|---|
| Features | Push-Lock, Turn-Reset |
|---|
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
|---|
| Operating Temperature | -20°C ~ 70°C |
|---|
| Mechanical Life | 300,000 Cycles |
|---|
| Electrical Life | 300,000 Cycles |
|---|
| Online Catalog | A22 and A22E Series |
|---|
| Associated Product | Z1648-ND - CONTROL BOX 1 HOLE EMERGENCY YELZ1547-ND - SWITCH BLOCK GP SPST-NC 10AZ3382-ND - ACCY E-STOP SHROUD EMO YLWZ5311-ND - ACCY E-STOP SHROUD EMOSW1385-ND - SWITCH E-STOP SHROUD 1 SPACERA22Z-EG22-ND - SWITCH E-STOP SHROUD 2 SPACERS |
|---|
| Other Names | 11004-7001A22EM01Z1504 |
|---|
