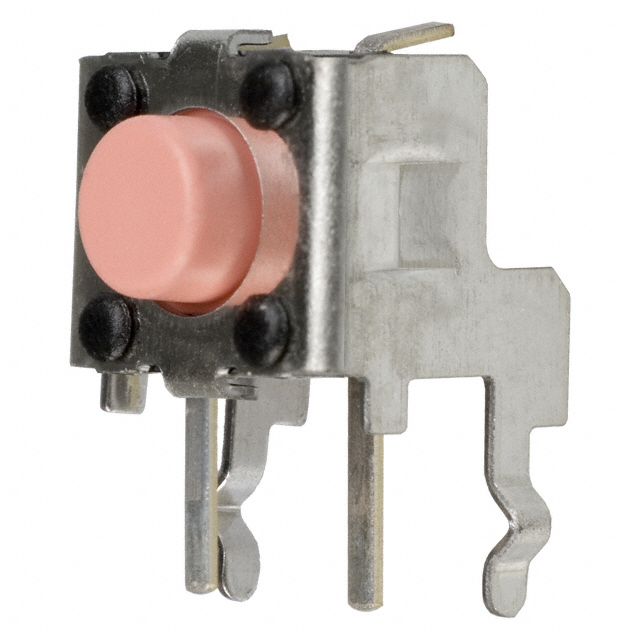

| Part Number | B3F-3125 |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4,785 25,000 - Factory Stock |
| Datasheet | B3F-3125 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
B3F-3125
-
- USD 0.65
Product Details
| Part Number | B3F-3125 |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | B3F |
| Family | Tactile Switches |
| Other Related Documents | How to Read Date Codes |
| Product Training Modules | Medical Solutions |
| PCN Design/Specification | B3F (6x6) Plunger June/2010 |
| Standard Package | 1,000 |
| Packaging | Bulk |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Actuator Height off PCB, from Pins | 3.85mm |
| Actuator Orientation | Side Actuated |
| Termination Style | PC Pin |
| Outline | 7.40mm x 7.30mm |
| Illumination | Non-Illuminated |
| Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - |
| Operating Force | 260gf |
| Ingress Protection | - |
| Features | Grounding Pin |
| Actuator Material | - |
| Switch Travel | 0.25mm |
| Mechanical Life | 100,000 Cycles |
| Operating Temperature | -25°C ~ 70°C |
| Online Catalog | B3F Series |
| Other Names | B3F-3125-NDB3F3125SW851 |
