| Part Number | 94HAB10T |
|---|---|
| Manufacturer | Grayhill Inc. |
| Description | SW BCD ROTARY DIP THRU HOLE 50V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2,558 |
| Datasheet | 94HAB10T |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

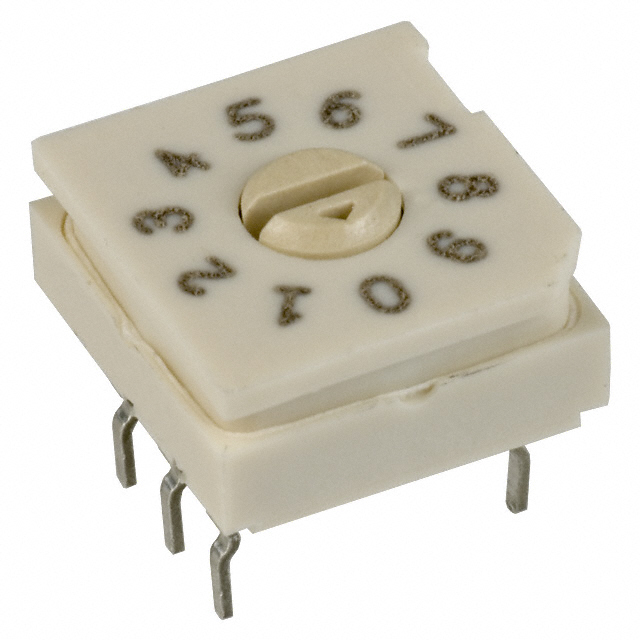

94HAB10T
-
- USD 2.88
Product Details
| Part Number | 94HAB10T |
|---|---|
| Manufacturer | Grayhill Inc. |
| Description | SW BCD ROTARY DIP THRU HOLE 50V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | 94H |
| Family | DIP Switches |
| Standard Package | 27 |
| Packaging | Tube |
| Circuit | BCD |
| Number of Positions | 10 |
| Current Rating | 100mA |
| Voltage Rating | 50VDC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.225" (5.72mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Sealed |
| Body Material | Plastic |
| Length | 0.390" (9.91mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mechanical Life | 10,000 Cycles |
| Electrical Life | - |
| Online Catalog | 94H Series |
| Other Names | GH7252 |
