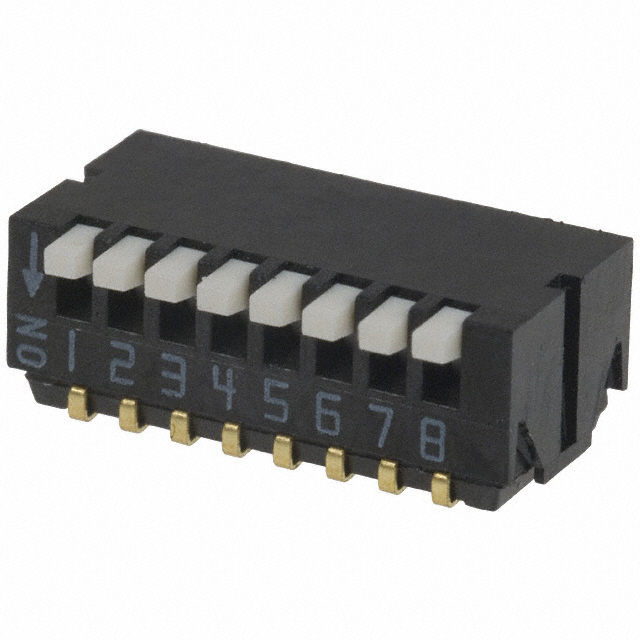

| Part Number | CHP-081TA |
|---|
| Manufacturer | Copal Electronics Inc. |
|---|
| Description | SWITCH DIP PIANO STYLE 8-POS 6V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | CHP |
|---|
| Family | DIP Switches |
|---|
| 3D Model |
CHP-081TA
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Circuit | SPST |
|---|
| Number of Positions | 8 |
|---|
| Current Rating | 100mA |
|---|
| Voltage Rating | 6VDC |
|---|
| Actuator Type | Piano |
|---|
| Actuator Level | Raised |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Height Above Board | 0.181" (4.60mm) |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination Style | J Lead |
|---|
| Pitch | 0.050" (1.27mm), Half |
|---|
| Washable | No |
|---|
| Features | - |
|---|
| Body Material | Polyphenylene Sulfide (PPS) |
|---|
| Length | 0.480" (12.19mm) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 1,000 Cycles |
|---|
| Online Catalog | CHP Series |
|---|
| Other Names | 563-1019-6 |
|---|
