| Part Number | 76SB08ST |
|---|---|
| Manufacturer | Grayhill Inc. |
| Description | SW DIP EXT RCKR SEALED 8POS 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3,724 10,764 - Factory Stock |
| Datasheet | 76SB08ST |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
76SB08ST
-
- USD 1.53
Product Details
| Part Number | 76SB08ST |
|---|---|
| Manufacturer | Grayhill Inc. |
| Description | SW DIP EXT RCKR SEALED 8POS 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | 76 |
| Family | DIP Switches |
| Standard Package | 12 |
| Packaging | Tube |
| Circuit | SPST |
| Number of Positions | 8 |
| Current Rating | 150mA |
| Voltage Rating | 30VDC |
| Actuator Type | Rocker |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.315" (8.00mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Body Material | Thermoplastic |

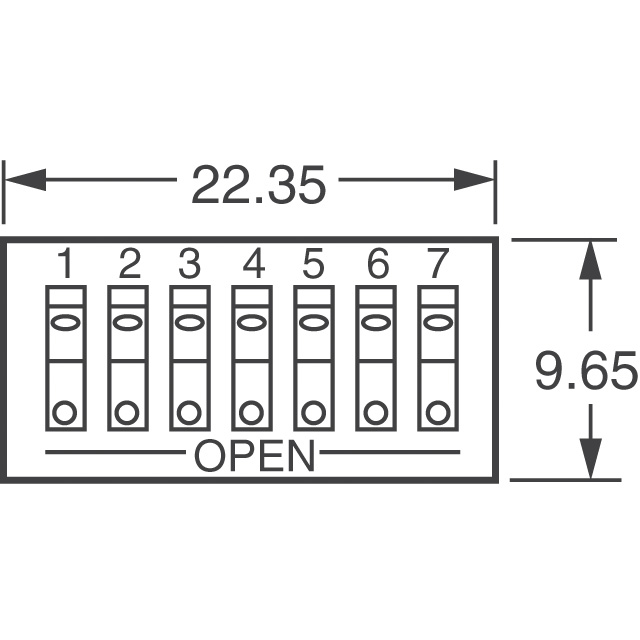

| Length | 0.880" (22.35mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Online Catalog | 76 Series |
| Associated Product | 76P08-ND - COVER FOR 8POS DIP SWITCH |
| Tooling | GH1343-ND - TUNING TOOL POINTED PLASTIC |
| Other Names | GH7176 |
