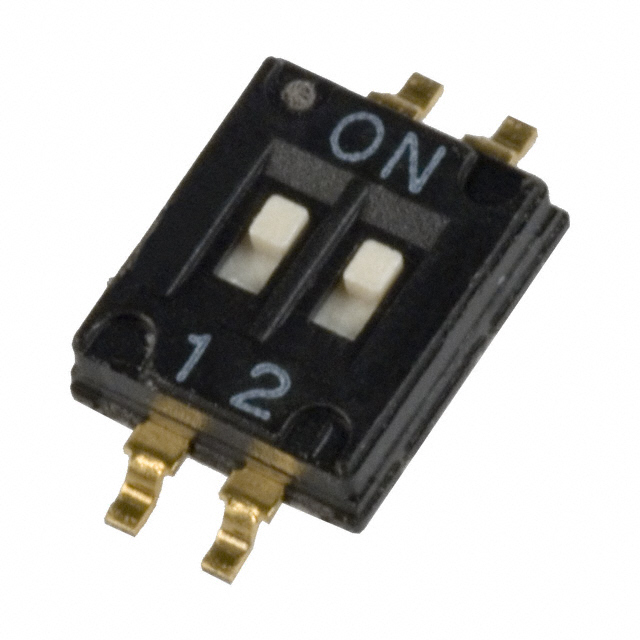

| Part Number | 97C02ST |
|---|---|
| Manufacturer | Grayhill Inc. |
| Description | SWITCH DIP HALF PITCH 2POS 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5,194 375 - Factory Stock |
| Datasheet | 97C02ST |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
97C02ST
-
- USD 1.96
Product Details
| Part Number | 97C02ST |
|---|---|
| Manufacturer | Grayhill Inc. |
| Description | SWITCH DIP HALF PITCH 2POS 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | 97 |
| Family | DIP Switches |
| Standard Package | 125 |
| Packaging | Tube |
| Circuit | SPST |
| Number of Positions | 2 |
| Current Rating | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.063" (1.60mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.050" (1.27mm), Half |
| Washable | Yes |
| Features | Tape Seal |
| Body Material | Polyamide (PA), Nylon |
| Length | 0.148" (3.77mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | - |
| Online Catalog | 97 Series |
| Tooling | GH1343-ND - TUNING TOOL POINTED PLASTIC |
| Other Names | GH1370 |
