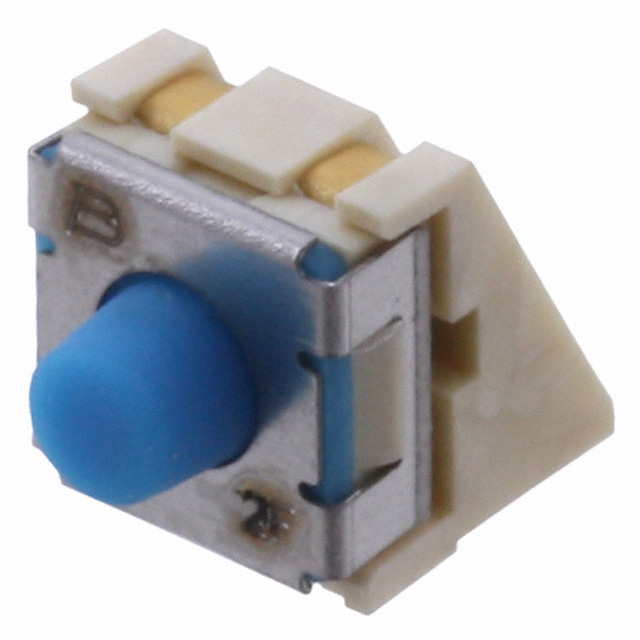

| Part Number | 7914S-1-000E |
|---|
| Manufacturer | Bourns Inc. |
|---|
| Description | SWITCH TACTILE SPST-NO 0.1A 16V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | 7914 |
|---|
| Family | Tactile Switches |
|---|
| PCN Design/Specification |
7914S Carrier Tape 06/Oct/2011
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.1A @ 16VAC/DC |
|---|
| Actuator Type | Standard |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Actuator Height off PCB, from Pins | - |
|---|
| Actuator Orientation | Side Actuated |
|---|
| Termination Style | SMD (SMT) Tab |
|---|
| Outline | 5.44mm x 5.00mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 300gf |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Actuator Material | Silicon Rubber |
|---|
| Switch Travel | - |
|---|
| Mechanical Life | 100,000 Cycles |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Online Catalog | 7914 Series |
|---|
| Other Names | 7914S-1-000EDKR |
|---|
