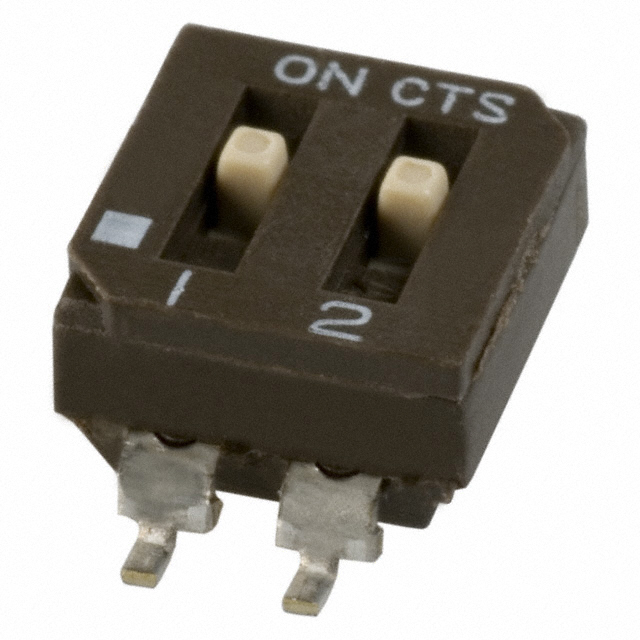

| Part Number | 219-2MST |
|---|
| Manufacturer | CTS Electrocomponents |
|---|
| Description | SWITCH TAPE SEAL 2 POS SMD 50V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | 219 |
|---|
| Family | DIP Switches |
|---|
| Product Training Modules |
DIP Switch
|
|---|
| 3D Model |
219 Series 2 Pole.stp
|
|---|
| Standard Package | 85 |
|---|
| Packaging | Tube |
|---|
| Circuit | SPST |
|---|
| Number of Positions | 2 |
|---|
| Current Rating | 100mA |
|---|
| Voltage Rating | 20VDC |
|---|
| Actuator Type | Slide (Standard) |
|---|
| Actuator Level | Raised |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Gold |
|---|
| Height Above Board | 0.170" (4.33mm) |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Pitch | 0.100" (2.54mm), Full |
|---|
| Washable | Yes |
|---|
| Features | Epoxy Sealed Terminals, Tape Seal |
|---|
| Body Material | - |
|---|
| Length | 0.258" (6.55mm) |
|---|
| Operating Temperature | -55°C ~ 85°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 2,000 Cycles |
|---|
| Online Catalog | 219 Series |
|---|
| Other Names | 2192MSTCT2192MST |
|---|
