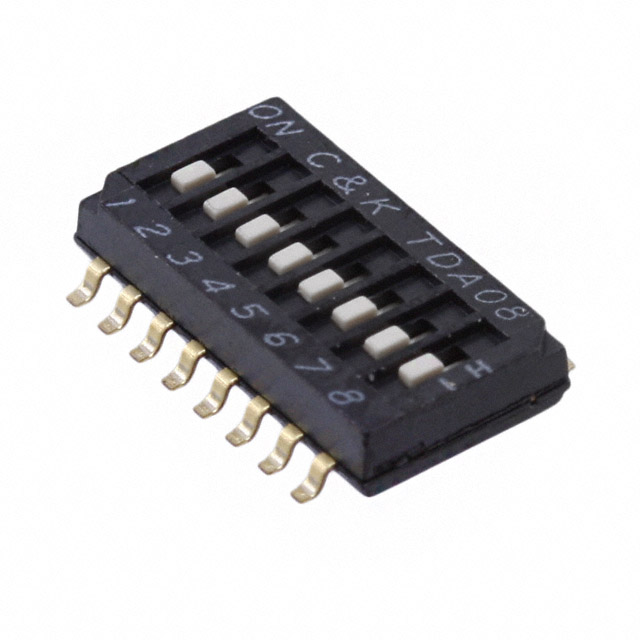

| Part Number | TDA08H0SB1R |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH DIP 8POS HALF PITCH 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | TDA |
|---|
| Family | DIP Switches |
|---|
| Product Training Modules |
Introduction to Electromechanical Switches
|
|---|
| 3D Model |
TDA08H0SB1(R).stp
TDA08H0SB1(R).pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Circuit | SPST |
|---|
| Number of Positions | 8 |
|---|
| Current Rating | 25mA |
|---|
| Voltage Rating | 24VDC |
|---|
| Actuator Type | Slide (Standard) |
|---|
| Actuator Level | Flush, Recessed |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Height Above Board | 0.091" (2.30mm) |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Pitch | 0.050" (1.27mm), Half |
|---|
| Washable | Yes |
|---|
| Features | Tape Seal |
|---|
| Body Material | Polyphenylene Sulfide (PPS) |
|---|
| Length | 0.444" (11.28mm) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mechanical Life | 1,000 Cycles |
|---|
| Electrical Life | 1,000 Cycles |
|---|
| Online Catalog | TDA Series |
|---|
| Other Names | *TDA08H0SB1RCKN9504CTTDA08H0SB1R-ND |
|---|
