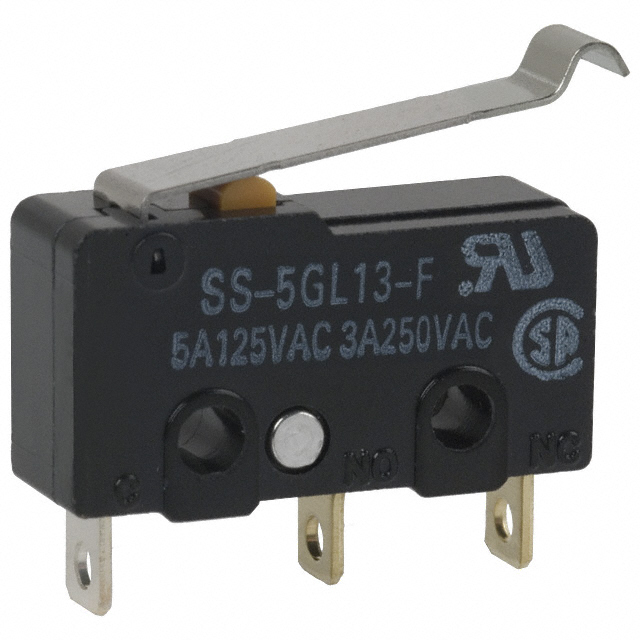

| Part Number | SS-5GL13-F |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SWITCH SIM ROLLER SPDT 5A 125V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | SS |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Snap Switches
|
|---|
| Standard Package | 500 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 5A (AC), 4A (DC) |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Lever, Simulated Roller |
|---|
| Mounting Type | Chassis Mount |
|---|
| Termination Style | Solder Lug |
|---|
| Ingress Protection | IP40 |
|---|
| Features | - |
|---|
| Operating Force, Torque | 16gf |
|---|
| Release Force | 2gf |
|---|
| Pretravel | - |
|---|
| Differential Travel | 0.031" (0.8mm) |
|---|
| Overtravel | 0.047" (1.2mm) |
|---|
| Operating Position | 0.420" (10.7mm) |
|---|
| Mechanical Life | 30,000,000 Cycles |
|---|
| Electrical Life | 200,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Other Names | SS-5GL13-F-NDSS-5GL13FSS5GL13FSW1006 |
|---|
