| Part Number | 1825057-7 |
|---|
| Manufacturer | TE Connectivity Alcoswitch Switches |
|---|
| Description | SWITCH DIP EXT ACTUATOR 8POS 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | ADE |
|---|
| Family | DIP Switches |
|---|
| Featured Product |
TE Connectivity Alcoswitch Switches
Alcoswitch DIP Switches
|
|---|
| 3D Model |
1825057-7.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 20 |
|---|
| Packaging | Tube |
|---|
| Circuit | SPST |
|---|
| Number of Positions | 8 |
|---|
| Current Rating | 100mA |
|---|
| Voltage Rating | 24VDC |
|---|
| Actuator Type | Slide (Standard) |
|---|
| Actuator Level | Raised |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|

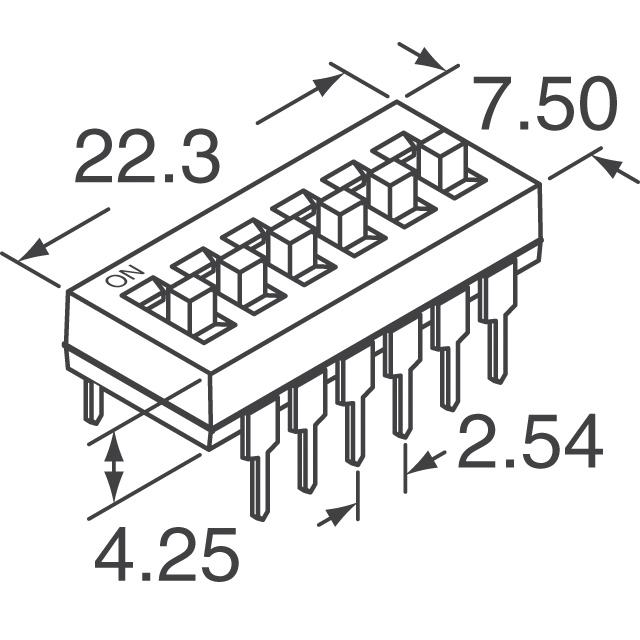

| Height Above Board | 0.228" (5.80mm) |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Pitch | 0.100" (2.54mm), Full |
|---|
| Washable | Yes |
|---|
| Features | - |
|---|
| Body Material | Polyphenylene Sulfide (PPS) |
|---|
| Length | 0.878" (22.30mm) |
|---|
| Operating Temperature | -30°C ~ 85°C |
|---|
| Mechanical Life | 1,000 Cycles |
|---|
| Electrical Life | 1,000 Cycles |
|---|
| Online Catalog | ADE Series |
|---|
| Other Names | 450-1366ADE0804 |
|---|
