| Part Number | SDA01H0SBR |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH DIP TAPE SEALED 1POS 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | SDA |
|---|
| Family | DIP Switches |
|---|
| Product Training Modules |
Introduction to Electromechanical Switches
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Circuit | SPST |
|---|
| Number of Positions | 1 |
|---|
| Current Rating | 25mA |
|---|
| Voltage Rating | 24VDC |
|---|
| Actuator Type | Slide (Standard) |
|---|
| Actuator Level | Flush, Recessed |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Gold |
|---|

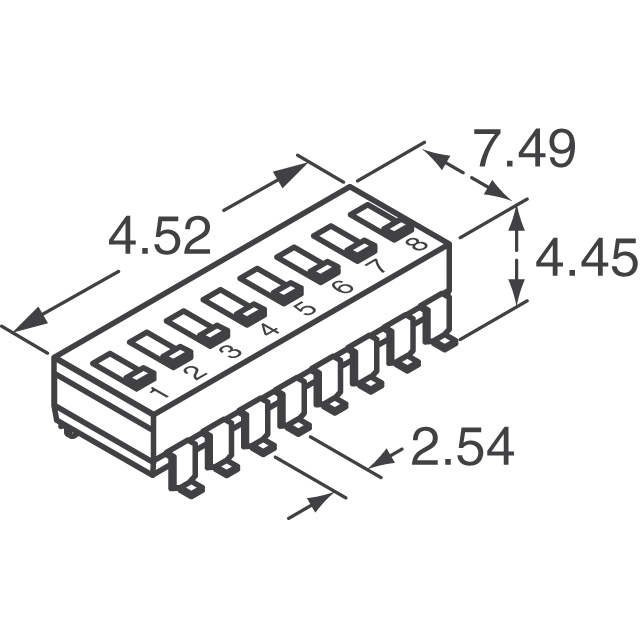

| Height Above Board | 0.175" (4.45mm) |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Pitch | 0.100" (2.54mm), Full |
|---|
| Washable | Yes |
|---|
| Features | Tape Seal |
|---|
| Body Material | Polyphenylene Sulfide (PPS) |
|---|
| Length | 0.178" (4.52mm) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mechanical Life | 1,000 Cycles |
|---|
| Electrical Life | 1,000 Cycles |
|---|
| Online Catalog | SDA Series |
|---|
| Other Names | CKN9490DKR |
|---|
