| Part Number | CHS-01TA |
|---|---|
| Manufacturer | Copal Electronics Inc. |
| Description | SWITCH DIP 1-POS SLIDE SMD 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71,216 |
| Datasheet | CHS-01TA |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

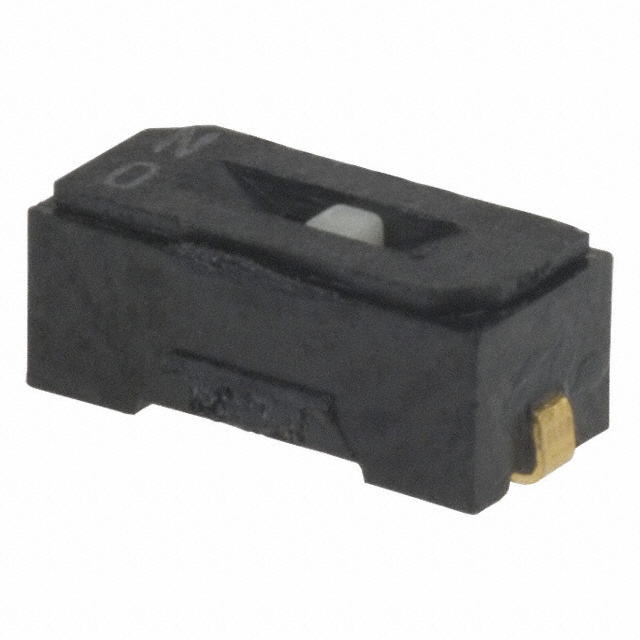

CHS-01TA
-
- USD 0.00
Product Details
| Part Number | CHS-01TA |
|---|---|
| Manufacturer | Copal Electronics Inc. |
| Description | SWITCH DIP 1-POS SLIDE SMD 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | CHS |
| Family | DIP Switches |
| 3D Model | CHS-01TA |
| Standard Package | 1 |
| Packaging | Digi-Reel? |
| Circuit | SPST |
| Number of Positions | 1 |
| Current Rating | 100mA |
| Voltage Rating | 6VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.098" (2.50mm) |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Pitch | 0.050" (1.27mm), Half |
| Washable | Yes |
| Features | Tape Seal |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.098" (2.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mechanical Life | - |
| Electrical Life | 2,000 Cycles |
| Online Catalog | CHS Series |
| Other Names | 563-1003-6 |
